WATERTIGHT UNDERFLOOR GATE OPENER TERRA-S

The TERRA-S is a unique underfloor gate opener, who convinces due to its solid workmanship. The accurately adjusted recirculating ballscrew ensures a smooth gate movement. Internal stops permit the use without external stops for GATE OPEN. For gates with up to 2,500mm length per wing, even for GATE CLOSED, external stops are not required.

The stable frame structure transfers the weight of the gate and the torsional force into the foundation. The support plate of the mechanics is connected with the plastic bowl by the manufacturer. The housing is hermetically sealed through the grinded cover plate mode of stainless steel. For adjusting purposes a comfortable opening is provided.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

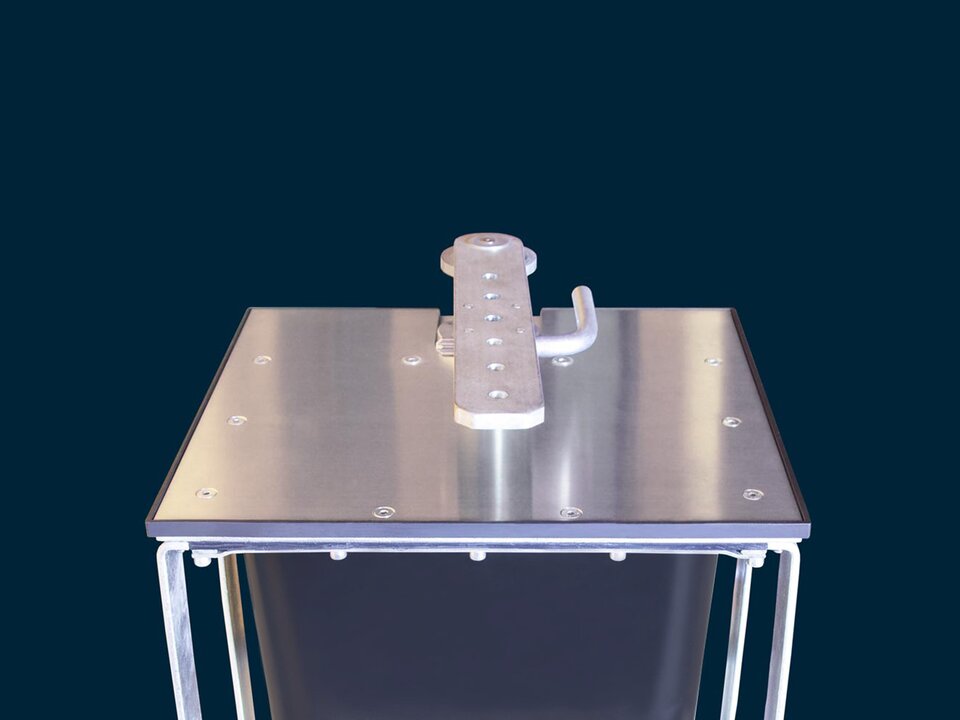

Material

– Cover plate made of stainless steel

– Housing made of plastic

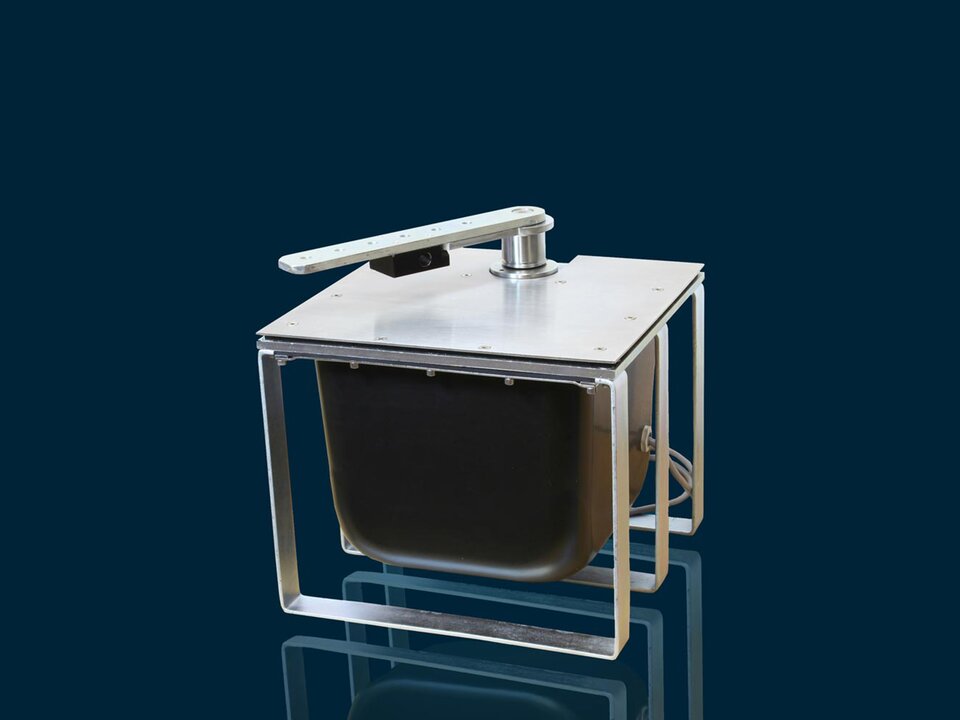

Stable substructure

Suitable for gate wings up to 3,500mm length and 500kg weight.

The frame structure transfers the weight of the gate and the torsional force into the foundation.

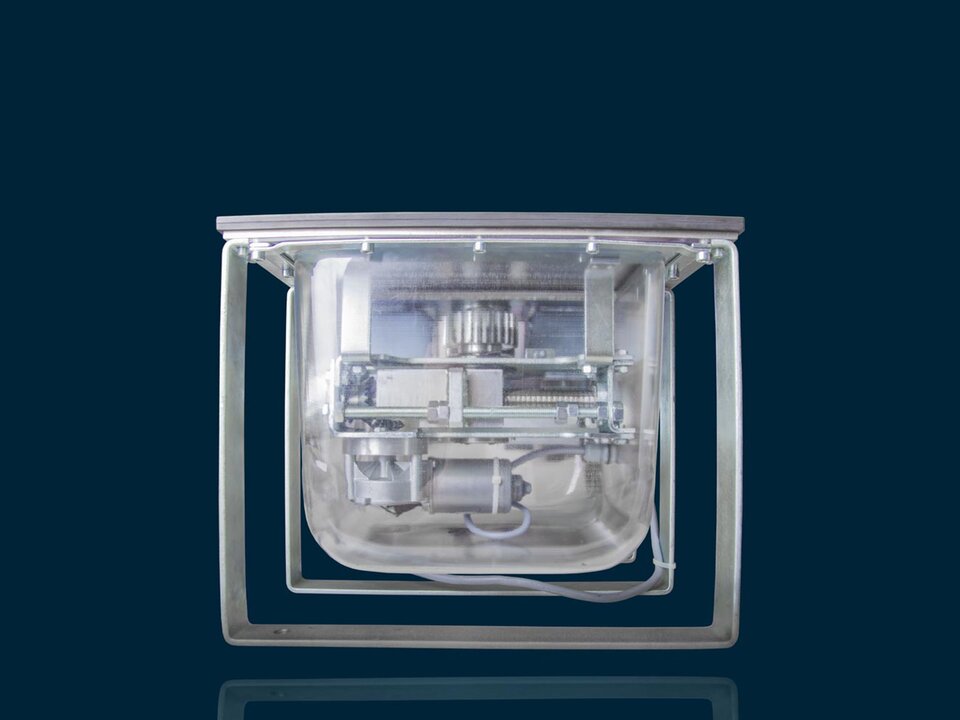

Innovative

External stops are not required.

The accurately adjusted recirculating ballscrew ensures a smooth gate movement.

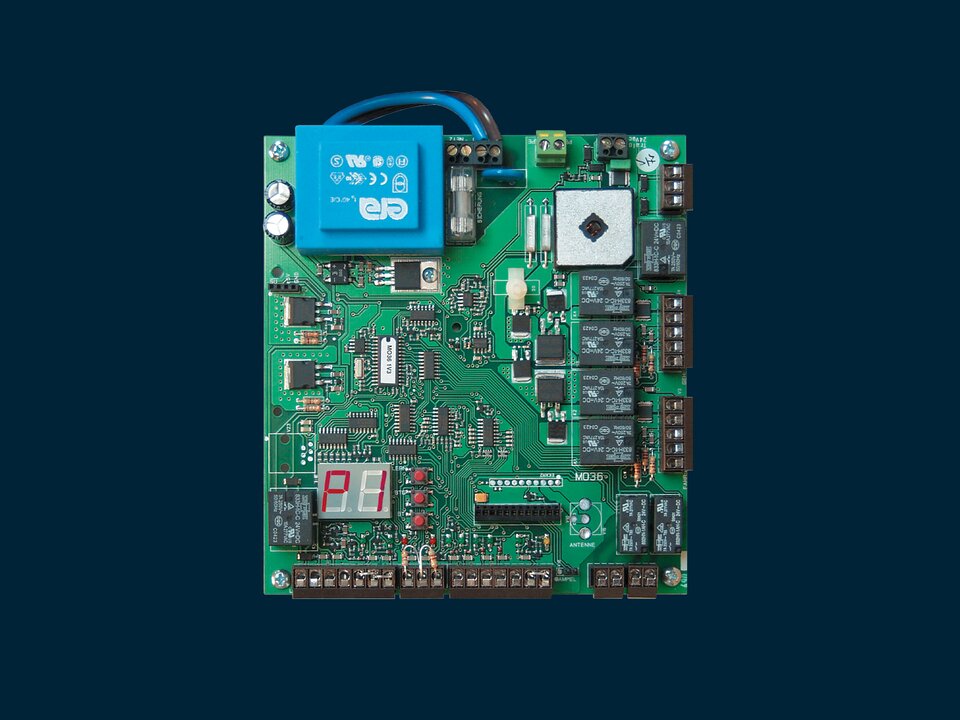

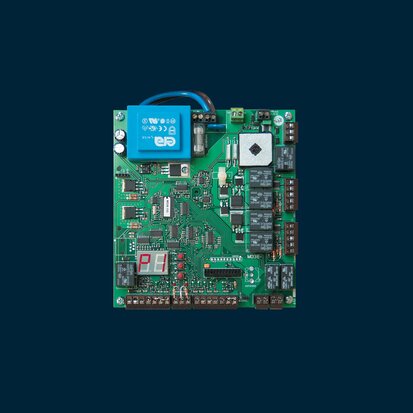

Controller MO36

Simple operation thanks to slim menu navigation via 2x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Required accessories

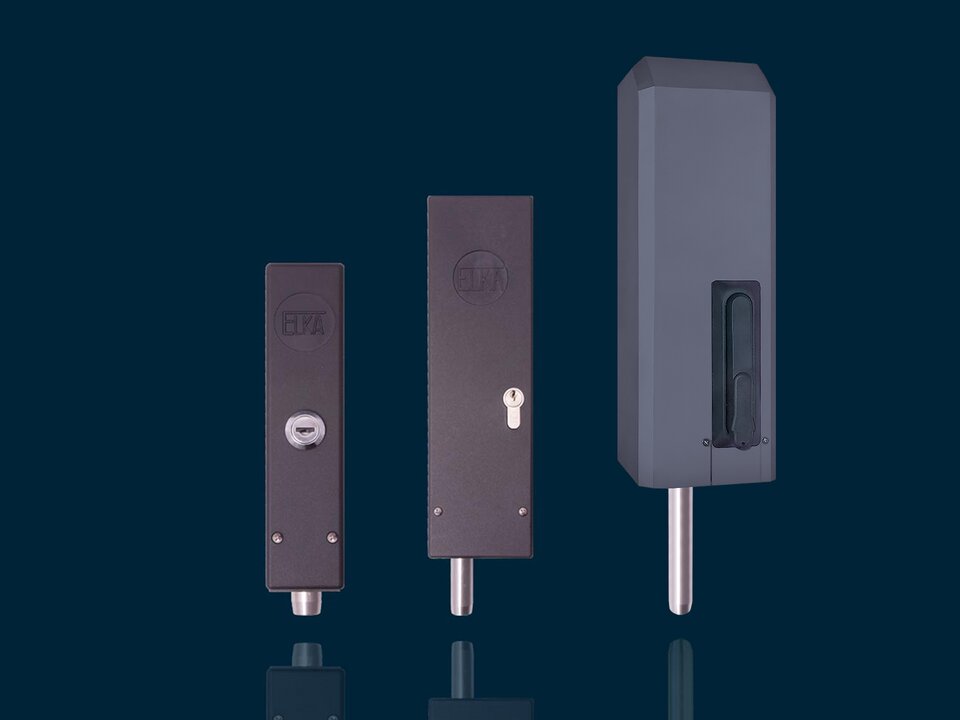

An electromagnetic or motor lock is required from 2,500mm gate wing length upwards.

VARIANTS

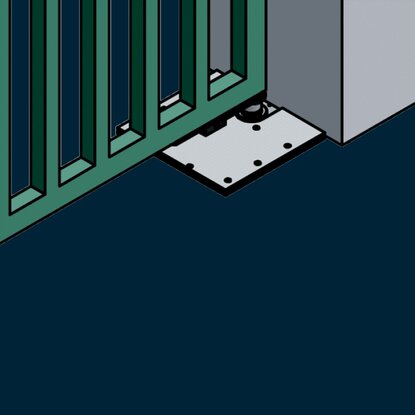

Standard

Installation between the gateposts with opening angle up to 95°, installation inside up to 180°

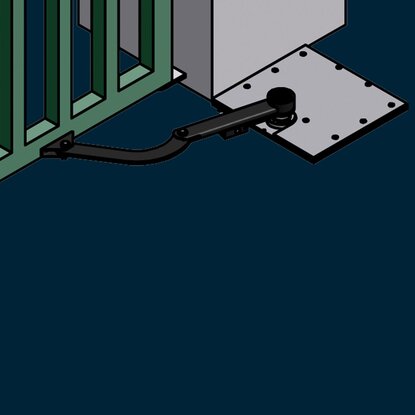

Articulated arm

Optional installation inside with opening angle up to 90°

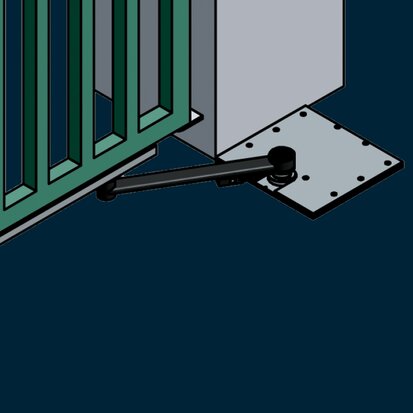

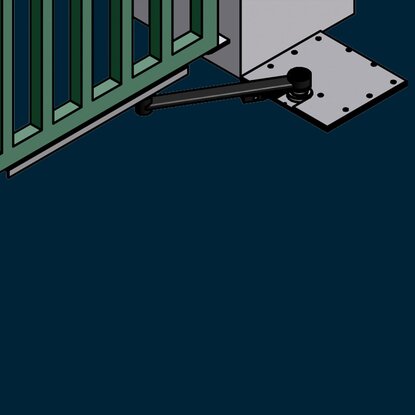

Straight arm with U-rail

Optional installation inside with opening angle up to 90°

Technical data

Type	Max. Wing width (mm)	Running time approx	Max. Opening angle (°)
TERRA-S 250*	2500	12	180
TERRA-S 350*	3500	12	180

For gate systems with one wing you need one opener and one controller, for gate systems with two wings you need two openers and one controller.

* from 2,500mm gate wing length and longer elctromagnetical or motor lock required

TERRA

803000600-SET
Swing gate opener TERRA-S 250

Description: Swing gate opener TERRA-S 250 24V, for gates with 1 wing up to 2,500mm length and 500kg weight of gate (not wind resisting), without controller
