BARRIERS FOR INDUSTRIAL SOLUTIONS

ELKA barriers of the series INDUSTRIAL - series S are designed for the protection of industrial entrances and can be operated with folding skirts and folding top and bottom skirts. Perfect running performance, achieved by electronic speed control and optimized mechanics, protect motor and gear. An efficient energy-saving concept with a powerful 24V BLDC motor and robust components made of galvanized steel ensure intensive operation with 100% duty cycle.

Variants
ELKA offers a selection of 3 barrier types with different effective boom lengths and running times, as well as suitable
accessories for different purposes, e.g. with folding skirt, LED boom lighting and safety devices.

Contact us
Find out more about the safe use of barriers in connection with vehicle and pedestrian traffic and contact our competent team.

We will be happy to support you in the planning and implementation of projects. Benefit from over 40 years of experience - approx. 100,000 barriers installed in over 80 countries worldwide. All ELKA products are manufactured in Germany and are subject to strict quality controls.

We look forward to your inquiry.

IoT ready package

Welcome to the future of service!

Whether you want to implement a new access control system or upgrade your existing barriers, the IoT-Ready package allows you to connect your barrier to the cloud-based EJOIN IoT portal in just a few steps.

Learn more

EJOIN IoT portal

Manage your barrier systems conveniently via the new EJOIN IoT portal and maintain an overview at all times and from any end device. You can access the portal by manually activating your access data from the partner area of our web store.

Learn more

Barrier housing

– Made of powder-coated aluminum, IP54

– With clamping technology

– Standard colour RAL 5012/9010

– Custom colours upon request (extra charge)

Controller MO 24

Simple operation thanks to easy menu navigation via 4x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Service switch and power outlet

For the safety of the service technician, the service switch deactivates all external operating commands. Service power outlet for convenient working on-site (not for UL version).

Folding skirts

– Folding skirt 750mm or 1,500mm height

– Folding top and bottom skirt 1,500mm height

– Pre-assembled for on-site installation

More information

Wide-range power supply

Compensation for fluctuating supply voltages within the specified range. Enables the operation of ELKA barriers in countries with different supply voltages.

ECON Box

The ECON Box with integrated WLAN module is installed in the barrier. The barrier can be configured and controlled via the ECON app.

More information

Professional

Robust mechanics

Galvanized steel components

Efficient drive concept

Powerful 24V BLDC motor, multi-stage planetary gear

Perfect running performance

Precise barrier boom movement through electronic rotation speed control

Power reversal

Power reversal upon encountering an obstacle

Comfortable

Loop detectors

3 integrated loop detectors for induction loops

Position detection

Position detection of the barrier boom without limit switch

Expandable

Optional modules, e.g. radio receiver, loading module

Multi-functional relays

6 multi-functional relays, optionally expandable to 14

Barrier boom

Made of aluminum, with red signal strips, pre-assembled

Boom connection

Double wing with middle boom connector, for profile or round barrier boom

LED boom lighting on the underside

Uniform illumination of the entire boom length, can be shortened as required

LED boom lighting profile

For the use with folding skirts, can be shortened as required

LED boom lighting

As a set or single, pre-assembled or for on-site installation

Shortening of the barrier boom

The shortening of the barrier boom to the required length is free of charge

Technical data

Type	Lock width (mm)	Running time approx	Duty Cycle (%)	UL-Version	Tree Hanging
S 5000	5170	4 / 5,5 / 7	100	Yes	HG 75
S 6000	6170	5 / 6,5 / 8	100	Yes	HG 75 , HG 150* , SG 150*
S 8000	8170	7 / 8,5 / 10	100	Yes	HG 75 , HG 150 , SG 150

* for boom length up to 4,500mm

** for boom length up to 6,000mm

INDUSTRIAL series

814206020-SET

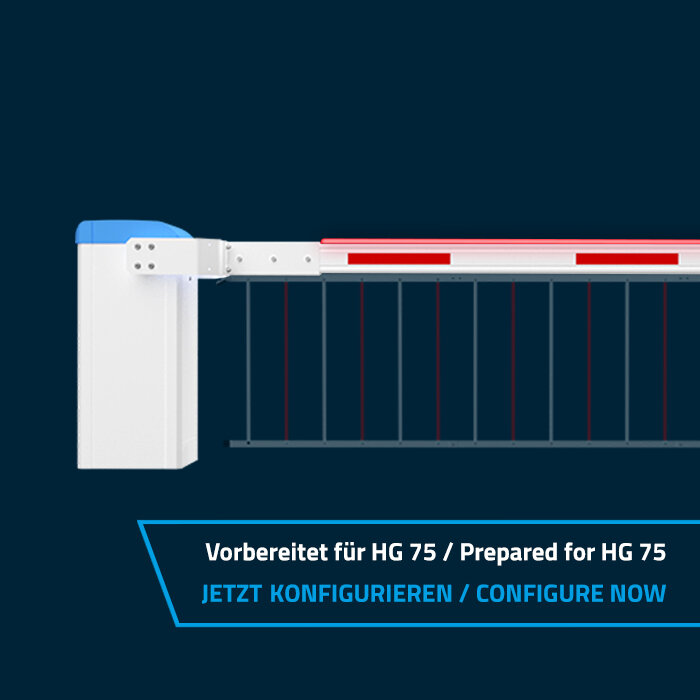

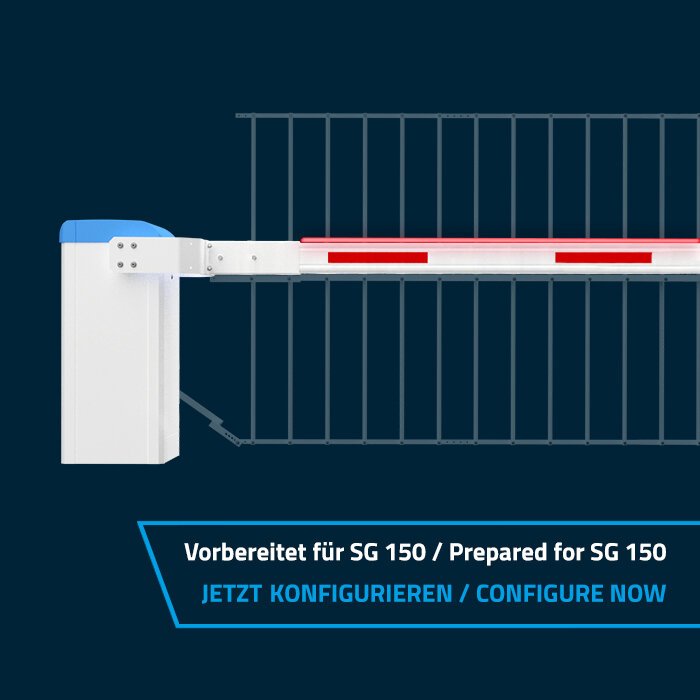

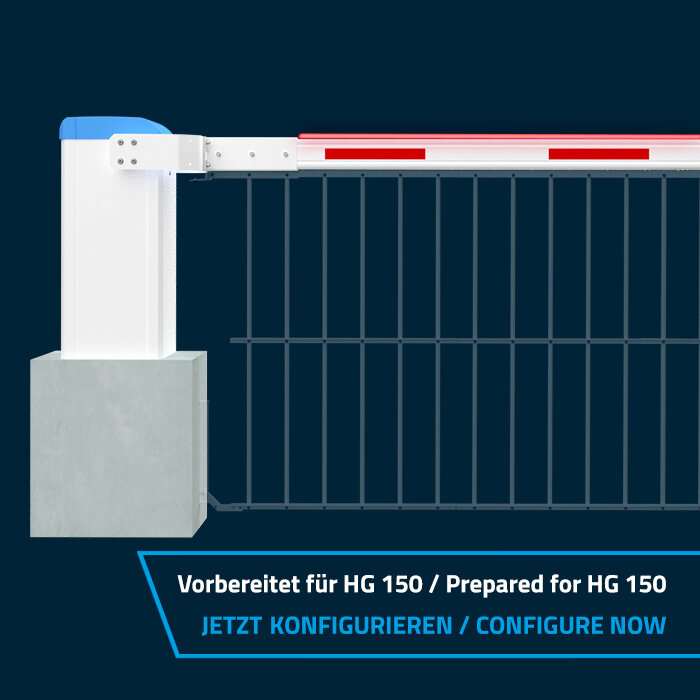

S 6000 LED strip installed abv. the 6,000mm barrier boom

Description: ELKA-barrier S 6000, 24V, incl. boom lighting profile with LED strip (installed above the barrier boom) -ALREADY INSTALLED- barrier boom 6,000mm, effective boom length 6,170mm, electromechanical, usage left/right, middle boom connector three speeds selectable, running times approx. 5.0s, 6.5s or 8.0s, controller MO 24 including c-rail, cable protective tube, additional terminal 230V, power supply

Color

Housing RAL 9010, Hood RAL 5012

More colors available in the configurator

Configure
