BARRIERS FOR CAR GARAGES AND PARKING LOTS

ELKA barriers of the PARKING series are designed for access control of parking garages and car parks. Perfect running performance, achieved by electronic speed control and optimized mechanics, protect motor and gear. An efficient drive concept with a powerful 24V BLDC-gear and robust components ensure intensive operation with 100% duty cycle. Drive lever with vandalism protection.

Variations
ELKA offers a selection of 5 barrier types of this series with different effective boom lengths and running times, as well as suitable accessories for different purposes, e.g. boom lighting LED, articulation kits and safety devices.

Contact us
Find out more about the safe use of barriers in connection with vehicle and pedestrian traffic and contact our expert team. We will be happy to support you in the planning and implementation of projects. Benefit from over 40 years of experience - approx. 100,000 barriers installed in over 80 countries worldwide. All ELKA products are manufactured in Germany and are subject to strict quality controls.

We look forward to your inquiry.

Barrier housing

– Made of powder-coated aluminum, IP54

– With clamping technology

– Standard colour RAL 5012/9010

– Custom colours upon request (extra charge)

Controller MO 24

Simple operation thanks to slim menu navigation via 4x7-segment display and quick overview of incoming signals via LEDs at the inputs.

More information

Service switch and power outlet

For the safety of the service technician, the service switch deactivates all external operating commands. Service power outlet for convenient working on-site (not for UL version).

Wide-range power supply

Compensation for fluctuating supply voltages within the specified range. Enables the operation of ELKA barriers in countries with different supply voltages.

ECON Box

The ECON Box with integrated WLAN module is installed in the barrier. The barrier can be configured and controlled via the ECON app.

More information

Legal security of our products

According to the legal requirements, ELKA barriers of the series PARKING are offered in two versions - EU and UL version, according to the requirements of the European Union and North America (USA, Canada).

More information

Professional

Robust mechanics

Galvanized steel components, drive lever with vandalism protection

Efficient drive concept

Powerful 24V BLDC motor, multi-stage planetary gear

Perfect running performance

Precise boom movement through electronic rotation speed control

Power reversal

Power reversal upon encountering an obstacle

Comfortable

Loop detectors

3 integrated loop detectors for induction loops

Position detection

Position detection of the barrier boom without limit switch

Expandable

Optional modules, e.g. radio receiver, loading module

Multi-functional relays

6 multi-functional relays, optionally expandable to 14

Barrier boom

Made of aluminum, with red signal strips, pre-assembled

Boom connection

Left / right usable, for profile or round barrier boom

Articulation kit

As a set or pre-assembled on the barrier boom

Boom lighting LED on the underside

Uniform illumination of the entire boom length, can be shortened as required

Boom lighting LED

As a set or single, pre-assembled or for on-site installation

Shortening of the barrier boom

The shortening of the barrier boom to the required length is free of charge

Technical data

Type	Lock width (mm)	Running time (s)	Duty Cycle (%)	UL-Version
P 2500	2280	0,9 / 1,3 / 2,5	100	Yes
P 3000	2780	1,3 / 1,8 / 2,5	100	Yes
P 3500	3280	1,8 / 2,5 / 3,8	100	Yes
P 4000	3780	2,8 / 3,8 / 4,5	100	Yes
P 5000	4780	3,8 / 4,5 / 5,5	100	Yes

PARKING series

814002500-SET

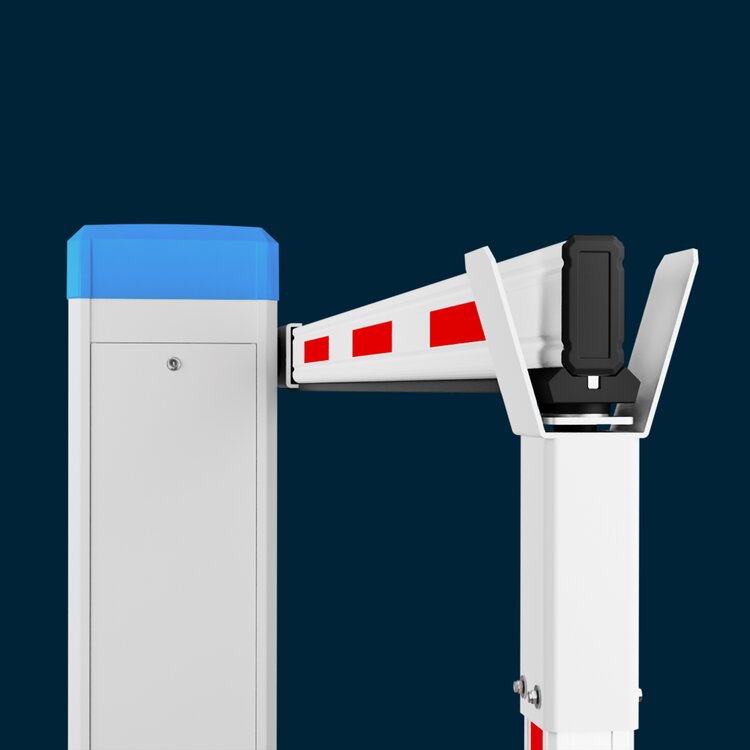

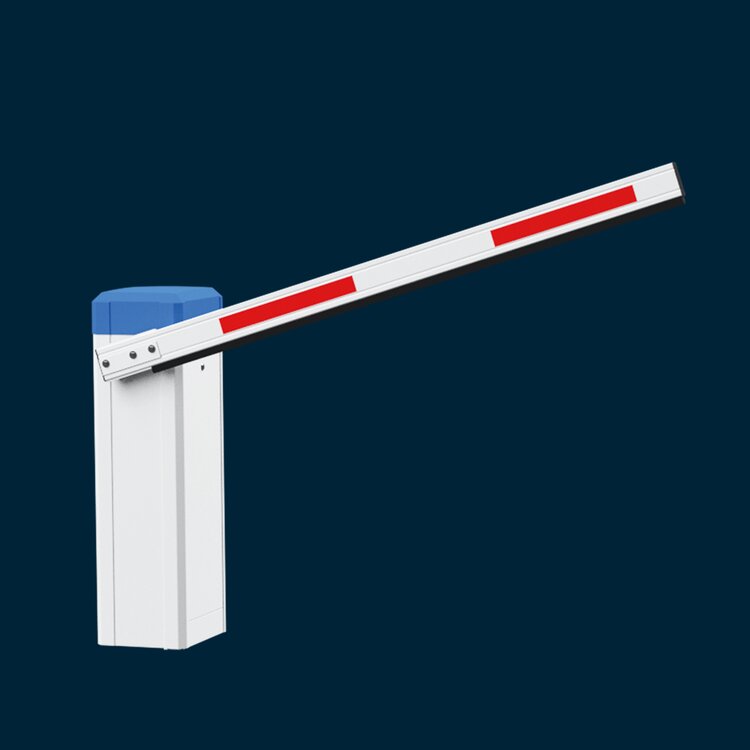

P 2500

Description: ELKA-barrier P 2500, 24V, barrier boom 2,500mm effective boom length 2,280mm, electromechanical, usage left/right, running time 0.9s/1.3s/2.5s, controller MO 24

Color

Housing RAL 9010, Hood RAL 5012

More colors available in the configurator

Configure
