DRIVE ASSEMBLY WITH FREQUENCY CONVERTER CONTROLLER

The drive unit offers sufficient power in any situation and is designed for gates with an opening width of up to 30,000mm. The drive assembly is delivered completely assembled with pre-wired controller. For serial gates designed in accordance with the EU-norms, ELKA offers support during the certification process.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Everything from a single source

With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector. Frequency converter controller included.

Safety devices

Type E protective devices, such as the laser scanner, can be connected. There are also photoelectric barrier connections with test functions for forward and rear space monitoring as well as failsafe inputs (performance level PLc) for the evaluation of safety devices.

Emergency release

There is a reliable mechanical brake on the motor, which is locked in a de-energized state. A simple emergency release is possible via the lever on the motor. There is also a separate input, an NC contact, for the fire alarm system.

Quick Install

Simple, infinitely variable height adjustment of the toothed wheel thanks to gas pressure springs and height indicator. The adjustment range of 100mm can be extended by 90mm using an optional console.

Step by Step

Controller MO 45FU

Frequency converter controller with illuminated graphic display and plain text menu (4 languages).

More information

PROFESSIONAL

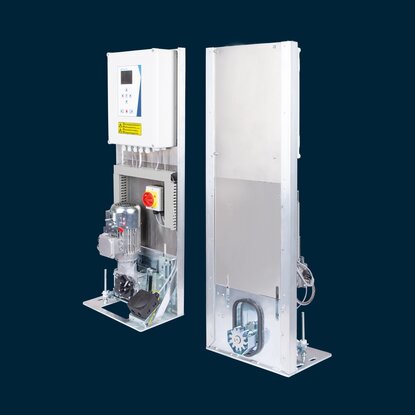

Gearbox and construction

Hypoid bevel gearbox with high efficiency. Robust steel construction

Opening width

For gate systems with opening widths of up to 30,000mm.

Power Factor Correction (PFC)

For unrestricted operation even with low mains voltage from 200Vac upwards.

PERFECT RUNNING PERFORMANCE

Gate Position Control

Precise position determination of the gate – even after power failure or emergency release.

Boost-Function

Higher rated power for a short time when the gate starts up

Speed control

Adjustable gate speed, soft-start/soft-stop, compliance with forces according to EN 12453

TOOTHED WHEELS (AVAILABLE SEPARATELY)

Module 4

Galvanized steel, Ø 80mm, 18 teeth

Module 6

Galvanized steel, Ø 80mm, 12 teeth

Technical data

Type	Dimensions W/D/H (mm)	Max. Gate weight (kg)	Max. Gate length (mm)	Supply- / Operation Voltage from (in V)	Supply- / Operation Voltage to (in V)	Running speed (m/min.)
EST-FU 1500A	400 x 311 x 1143	1500	30000	230V (50Hz) / 230V	230V (50Hz) / 230V	22.2
EST-FU 3000A	400 x 311 x 1143	3000	30000	230V (50Hz) / 230V	230V (50Hz) / 230V	16.2

Drive assemblys

812101510-SET

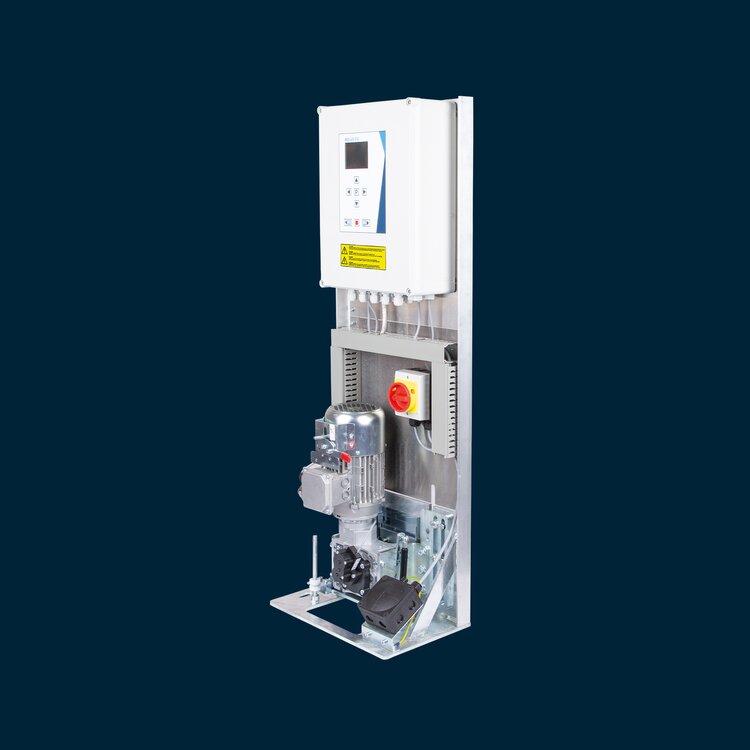

EST-FU 1500A drive assembly

Description: Slide gate opener EST-FU 1500A drive assembly, 230V, logic board MO45FU, WITHOUT toothed wheel
