SLIDE GATE OPENER WITH FREQUENCY CONVERTER CONTROLLER

The slide gate opener EST-FU is installed in a comfortable aluminium housing with plenty of space for additional fittings. The components are easily accessible via a lockable swivelling lever lock. The slide gate opener offers sufficient power in any situation and is designed for gates with an opening width of up to 30,000mm.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

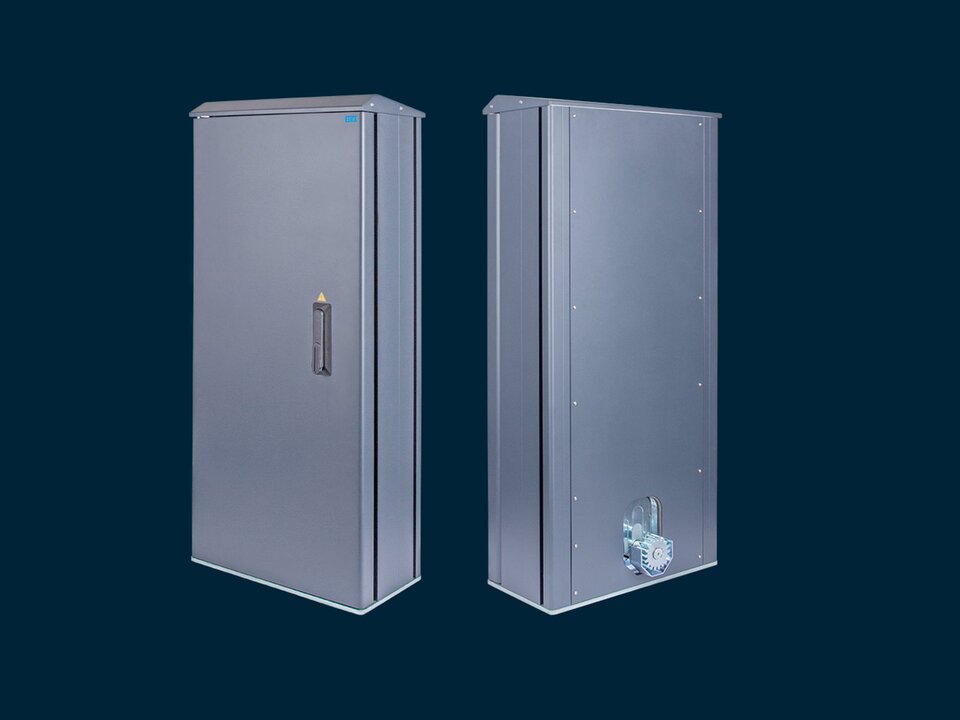

Aluminium housing

– Made of powder-coated aluminium

– Plenty of space for additional fittings

– Integrated loop detector

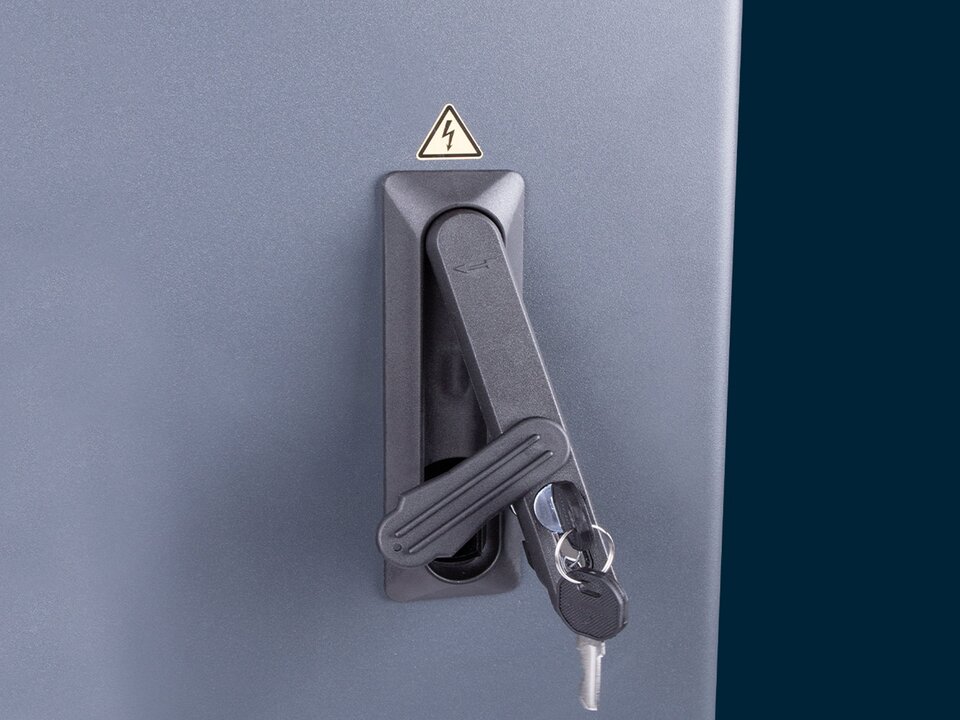

Locking

The housing can be locked using the swivel lever lock. Profile half cylinders can be optionally installed on-site.

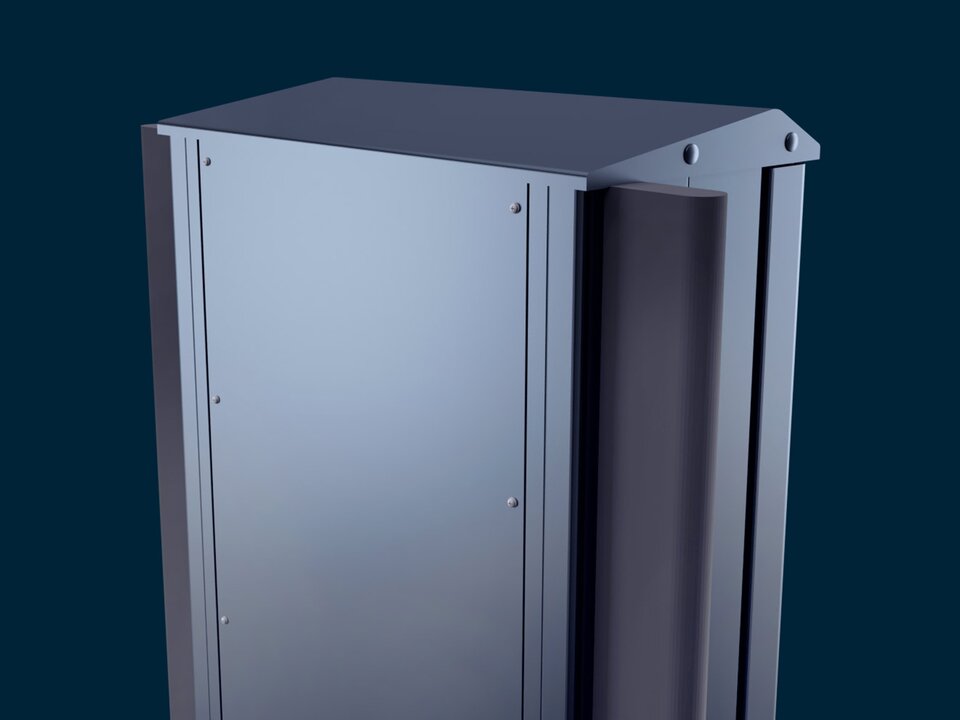

Safety contact profiles

The Receptacle for safety contact profiles is integrated in the housing. In addition, four separate contact profile evaluations enable improved monitoring.

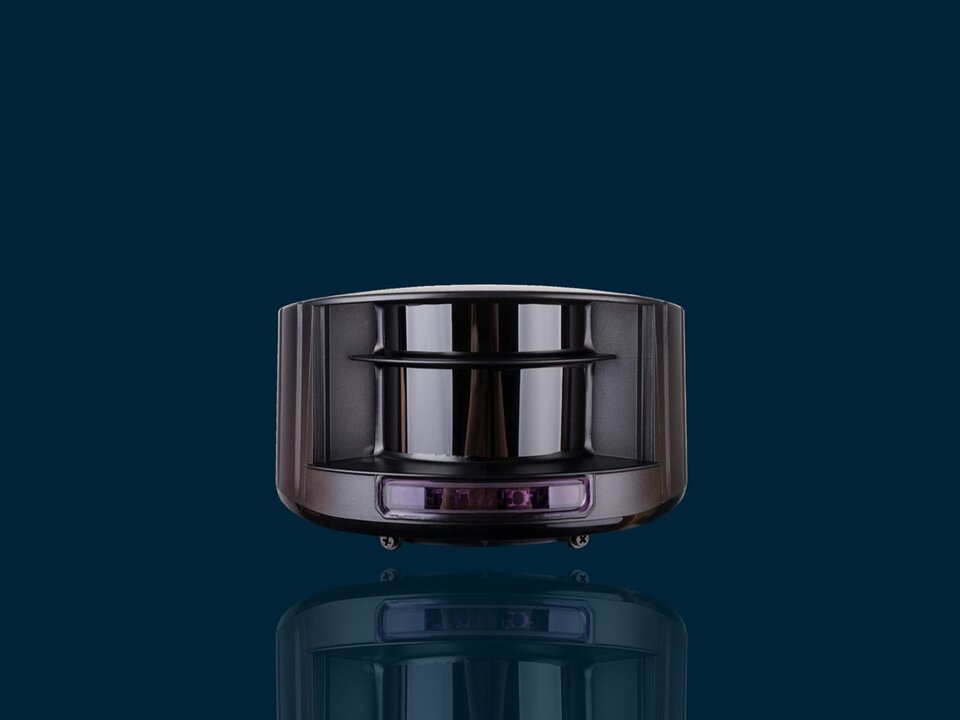

Safety devices

Type E protective devices, such as the laser scanner, can be connected. There are also photoelectric barrier connections with test functions for forward and rear space monitoring as well as failsafe inputs (performance level PLc) for the evaluation of safety devices.

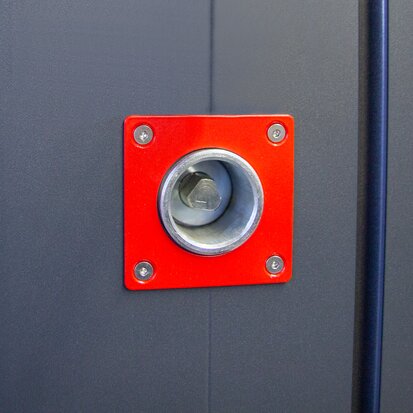

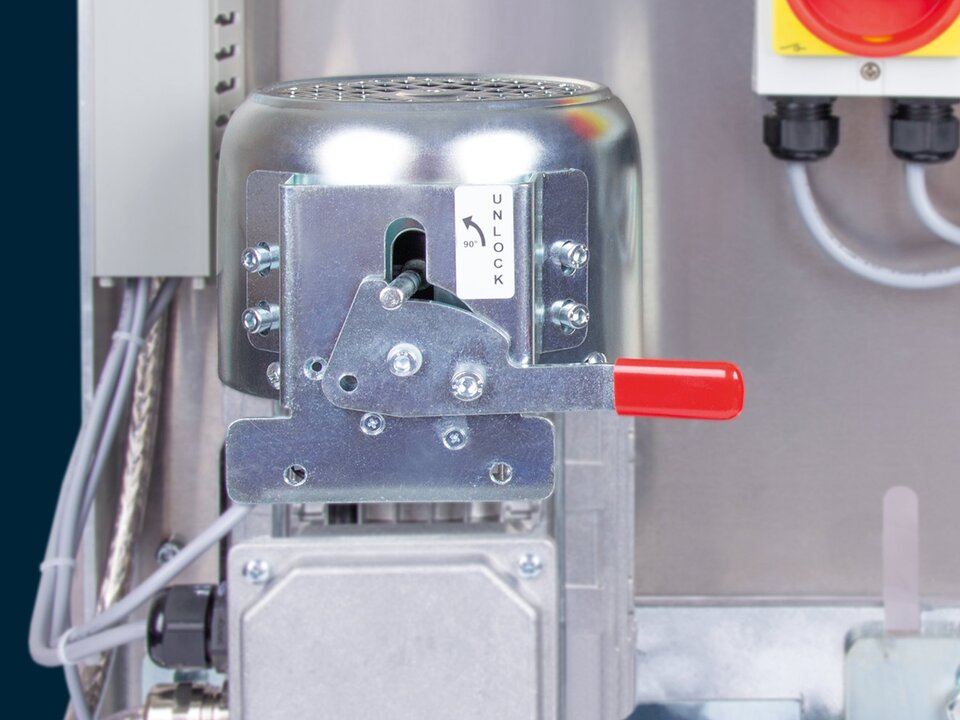

Emergency release

There is a reliable mechanical brake on the motor, which is locked in a de-energized state. A simple emergency release is possible via the lever on the motor. There is also a separate input, an NC contact, for the fire alarm system.

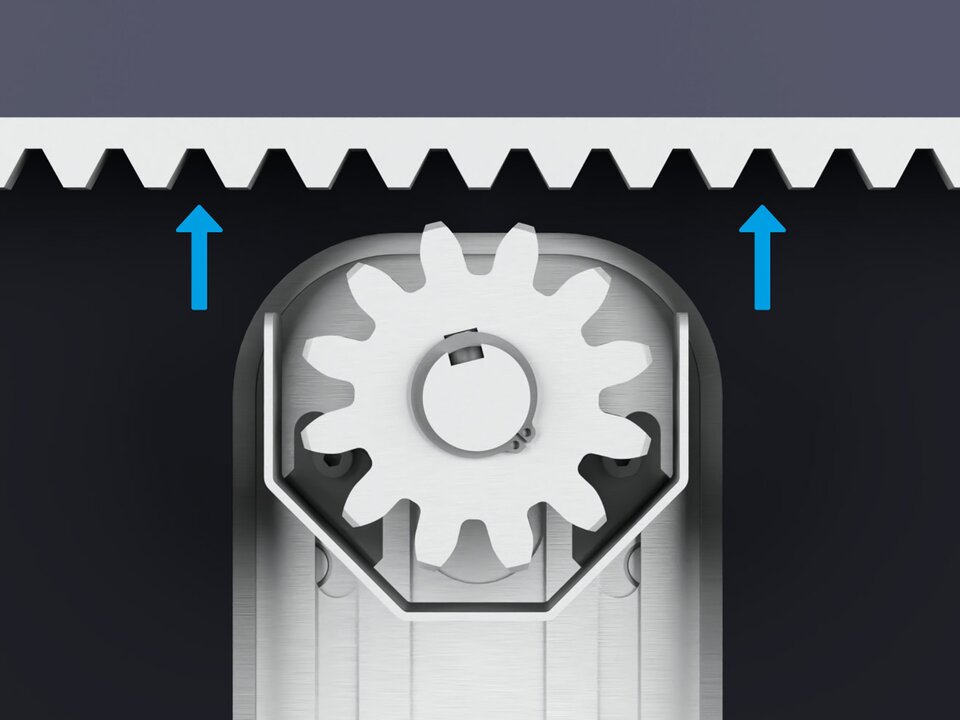

Quick Install

Simple, infinitely variable height adjustment of the toothed wheel thanks to gas pressure springs and height indicator. The adjustment range of 100mm can be extended by 90mm using an optional console.

Step by Step

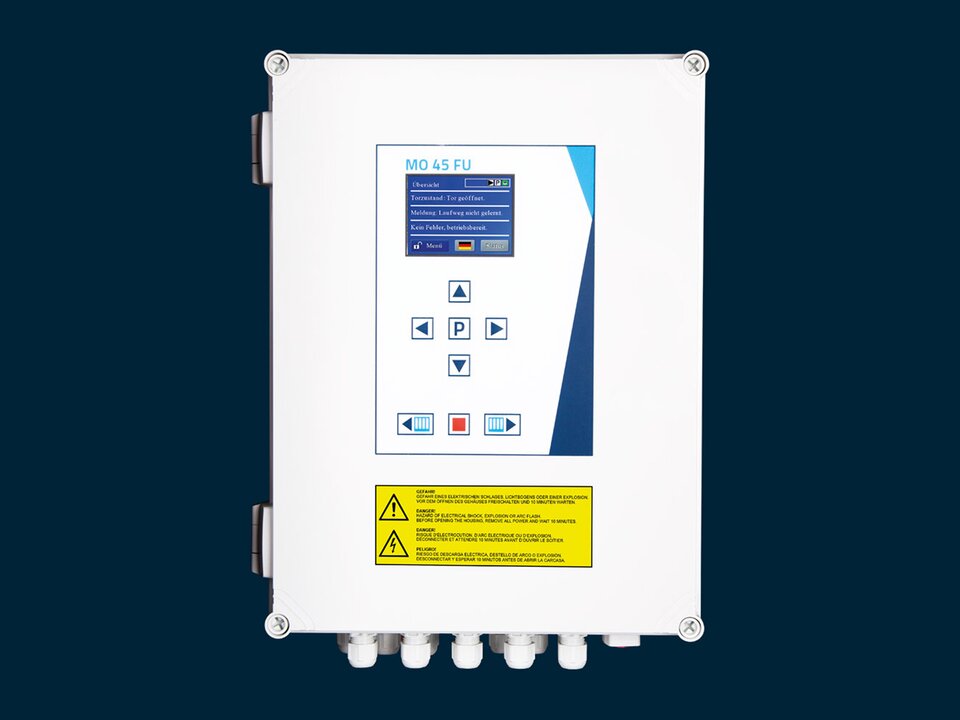

Controller MO 45FU

Frequency converter controller with illuminated graphic display and plain text menu (4 languages).

More information

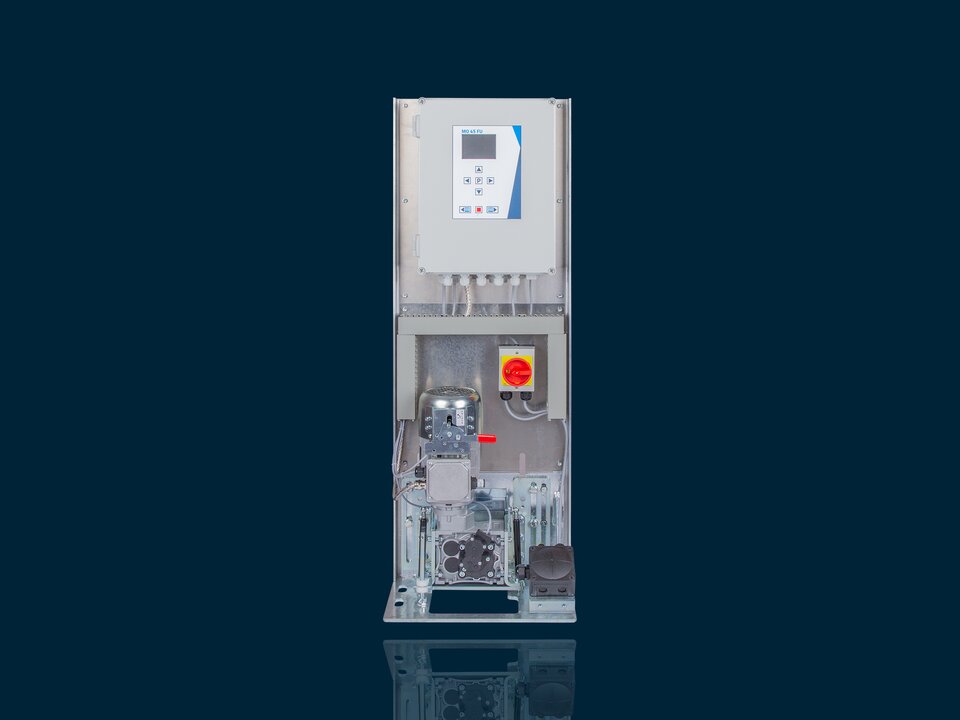

Drive assembly

For gateposts on site. With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector.

PROFESSIONAL

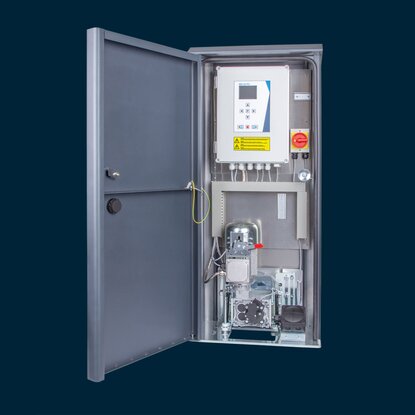

Gearbox and construction

Hypoid bevel gearbox with high efficiency. Robust steel construction

Opening width

For gate systems with opening widths of up to 30,000mm.

Power Factor Correction (PFC)

For unrestricted operation even with low mains voltage from 200Vac upwards

PERFECT RUNNING PERFORMANCE

Gate Position Control

Precise position determination of the gate – even after power failure or emergency release

Boost function

Higher rated power for a short time when the gate starts up

Speed control

Adjustable gate speed, soft-start/soft-stop, compliance with forces according to EN 12453

TOOTHED WHEELS (AVAILABLE SEPARATELY)

Module 4

Galvanized steel, Ø 80mm, 18 teeth

Module 6

Galvanized steel, Ø 80mm, 12 teeth

Technical data

Type	Dimensions W/D/H (mm)	Max. Gate weight (kg)	Max. Gate length (mm)	Supply- / Operation Voltage from (in V)	Running speed (m/min.)
EST-FU 1500	530 x 335 x 1185	1500	30000	230V (50Hz) / 230V	22.2
EST-FU 3000	530 x 335 x 1185	3000	30000	230V (50Hz) / 230V	16.2

Frequency converter drives

812101500-SET
EST-FU 1500, with MO 45FU

Description: Slide gate opener EST-FU 1500, with frequency converter controller MO45FU, 230V, aluminium housing in RAL 7016, max. 1500kg 30m length, WITHOUT toothed wheel

Color

More colors available in the configurator

Configure
