ORBIT DRIVE ASSEMBLY FOR GATEPOSTS ON SITE

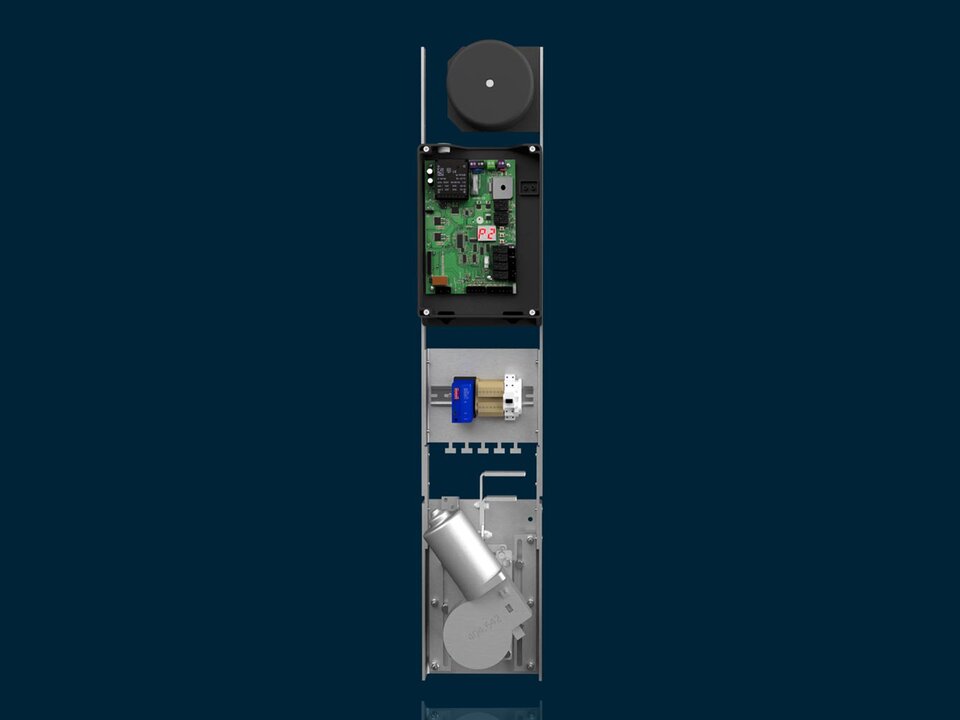

The drive assembly is delivered completely assembled. The drive unit and the controller are pre-wired and provide – in combination with the top-hat rail and the optional terminal row - space for accessories.

The console is simply fastened with 4 screws onto the on-site gate post. For serial gates designed in accordance with the EU-norms, ELKA offers support during the certification process.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Robust drive unit

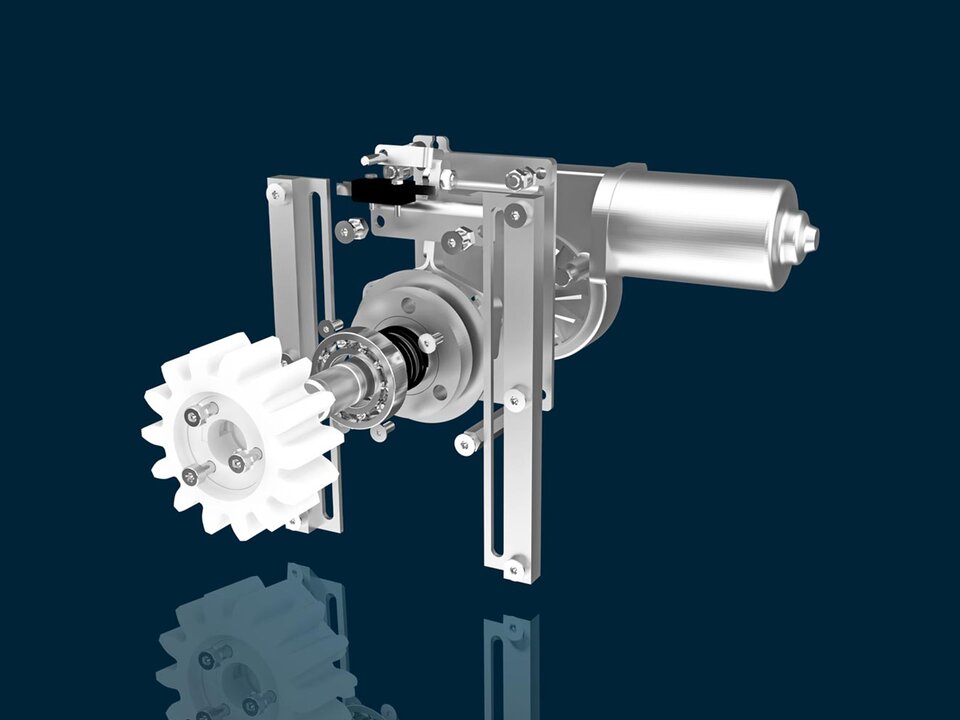

The drive unit is equipped with a sturdy shaft (Ø 20mm). The integrated damper hub serves to reduce the mechanical load. In addition, a quick and easy height adjustment of up to 75mm and a particularly low gear wheel position are possible.

Certification

For serial gates designed in accordance with the EU-norms, ELKA offers support during the certification process. The perfect opportunity for gate manufacturers to offer a certified system.

Controller MO 46

Simple operation thanks to slim menu navigation, fast analysis via LEDs at the inputs. With safety contact profile detection for OPEN and CLOSE separately, electronic speed control and automatic closure.

More information

Easy installation

The drive assembly is delivered completely assembled. The drive unit and the controller are pre-wired and provide, in combination with the top-hat rail and the optional terminal row, space for accessories. The console is simply fastened with 4 screws onto the on-site gate post.

VERSIONS

800 – Powerful

For gates up to 800kg and 14,000mm. Velocity approx. 12.6m/min.

800-L – Long drive shaft

For gates up to 600kg and 14,000mm. Velocity approx. 12.6m/min.

800-S – The fast version

For gates up to 300kg and 14,000mm. Velocity approx. 16.8m/min.

TOOTHED WHEELS

Module 4, steel or plastic

Ø 80mm, 18 teeth, for model 800/800-L

Modul 5, plastic

Ø 80mm, 14 teeth, for model 800/800-L

Module 4, steel

Ø 108mm, 25 teeth, for model 800-S

TOOTHED RACKS

Module 4, 30x12mm

Galvanized, height adjustable, to be screwed on the gate

Module 4, 25x20mm

Plastic, height adjustable, to be screwed on the gate

Module 5, 45x30mm

Aluminium and plastic, height adjustable, to be screwed on the gate, incl. damping

Technical data

Type	Dimensions W/D/H (mm)	Max. Gate weight (kg)	Max. Gate length (mm)	Supply- / Operation Voltage from (in V)	Supply- / Operation Voltage to (in V)	Running speed (m/min.)
ORBIT 800A	165 x 190 x 865	800	14000	230V (50Hz) / 24V	230V (50Hz) / 24V	12.6
ORBIT 800A-L	165 x 219 x 865	600	14000	230V (50Hz) / 24V	230V (50Hz) / 24V	12.6
ORBIT 800A-S	165 x 190 x 865	300	14000	230V (50Hz) / 24V	230V (50Hz) / 24V	16.8

Drive assemblys

812000604-SET

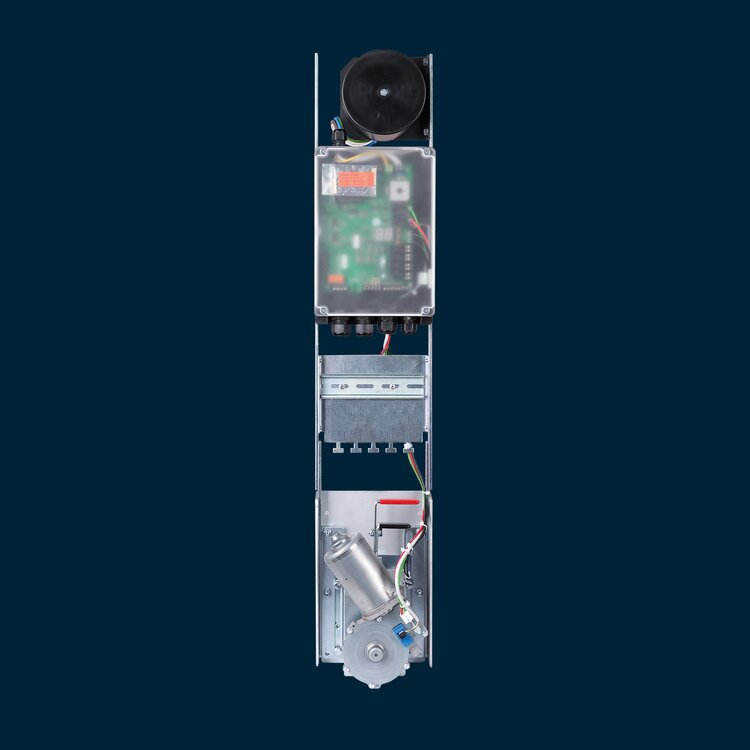

Drive assembly ORBIT 800A-S, toothed wheel steel module 4

Description: Drive assembly ORBIT 800A-S Toothed wheel, steel, module 4
