THE CLASSICAL SLIDE GATE OPENER

The robust slide gate opener offers a lot of space under its stainless steel hood for accessories, e.g., induction loops detector or timer. To remove the hood, unlock the swivelling lever lock and lift the hood. At the same time, the opening process interrupts the power transmission to the sliding gate (emergency release, e.g., in case of a power failure). Clear and orderly cable management, large cable bushings and professional plug-in terminals make the installation quick and easy.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

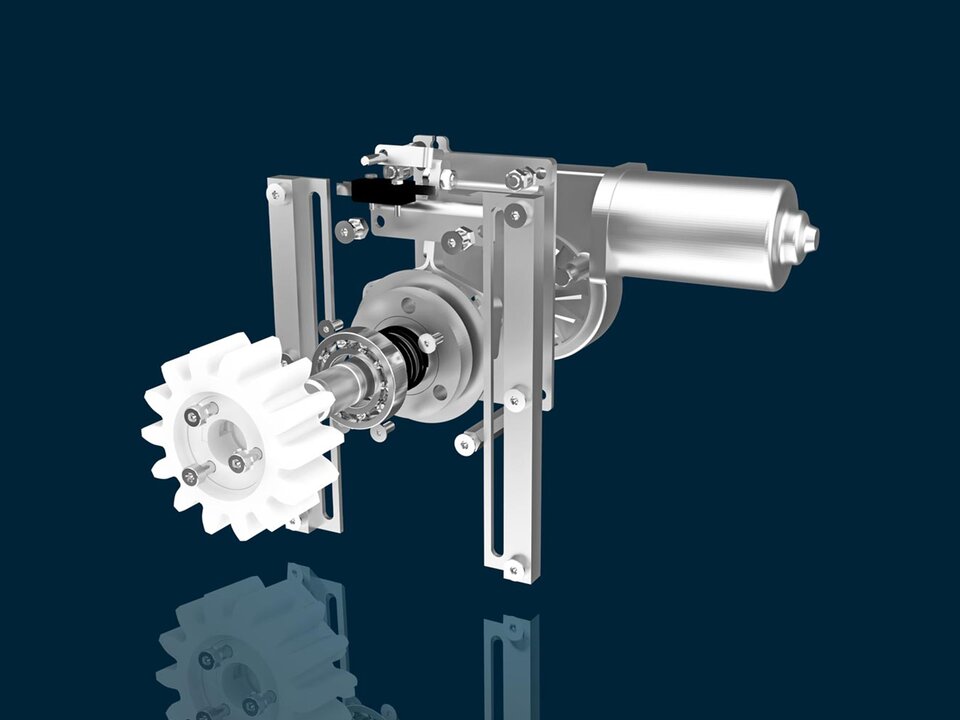

Robust drive unit

The drive unit is equipped with a sturdy shaft (Ø 20mm). The integrated damper hub serves to reduce the mechanical load. In addition, a quick and easy height adjustment of up to 75mm and a particularly low gear wheel position are possible.

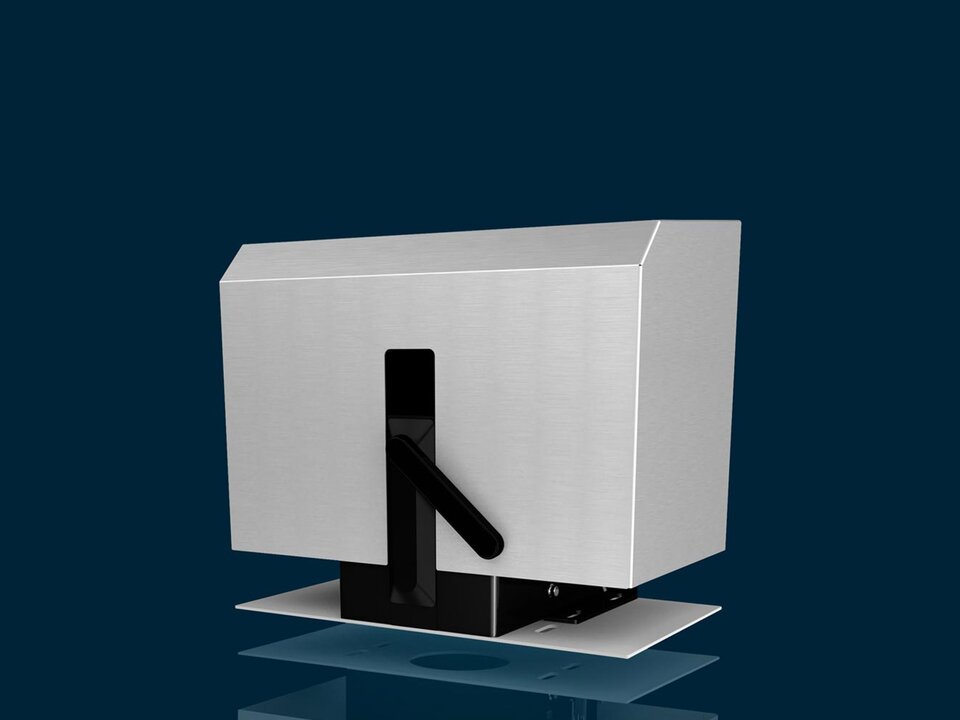

Lockable stainless-steel hood

The hood can be released from the drive unit via the swiveling lever lock and can be removed without using tools. At the same time, the power transmission is decoupled from the sliding gate.

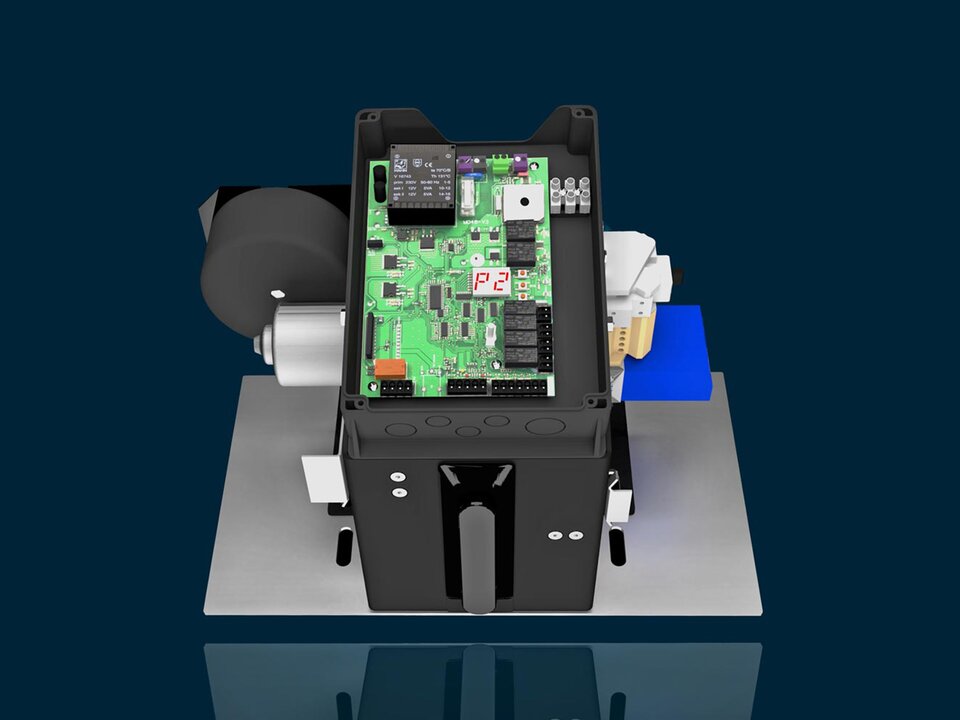

Comfortable access

Under the hood, all components are easily accessible. An optional terminal row is possible. Furthermore, a multi-functional relay is mounted for e.g., a third radio remote control channel for exterior lighting.

Certification

For serial gates designed in accordance with the EU-norms, ELKA offers support during the certification process.
The perfect opportunity for gate manufacturers to offer a certified system.

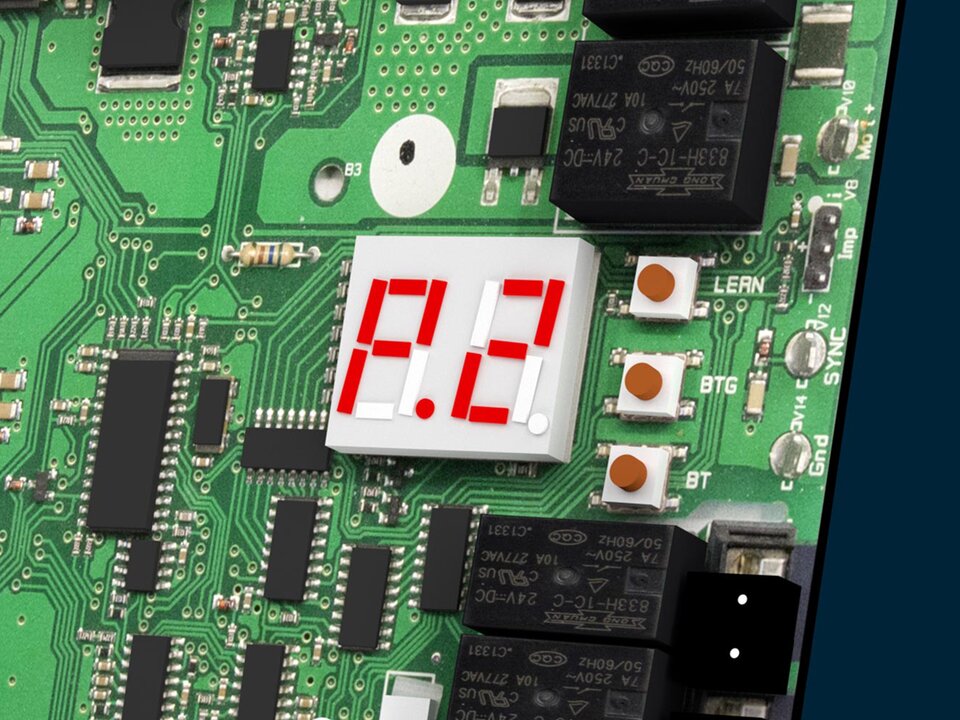

Controller MO 46

Simple operation thanks to slim menu navigation and fast analysis via LEDs at the inputs. With safety contact profile detection for OPEN and CLOSE separately, electronic speed control and automatic closure.

More information

VERSIONS

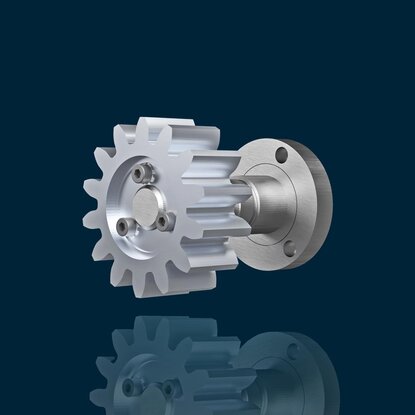

800 – Powerful

For gates up to 800kg and 14,000mm. Velocity approx. 12.6 m/min.

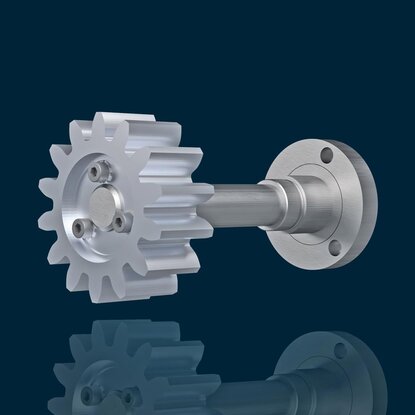

800-L – Long drive shaft

For gates up to 600kg and 14,000mm. Velocity approx. 12.6 m/min.

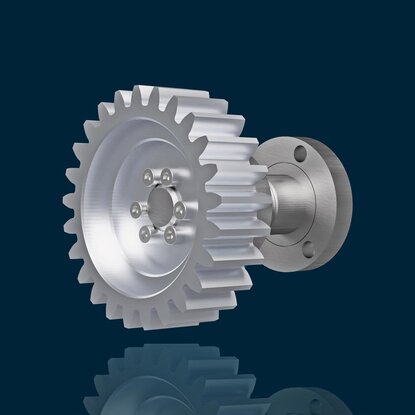

800-S – The fast version

For gates up to 300kg and 14,000mm. Velocity approx. 16.8 m/min.

TOOTHED WHEELS

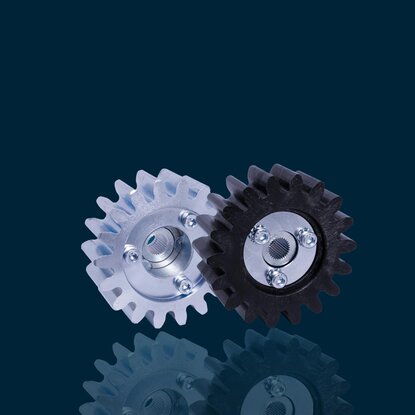

Module 4, steel or plastic

Ø 80mm, 18 teeth, for model 800/800-L

Modul 5, plastic

Ø 80mm, 14 teeth, for model 800/800-L

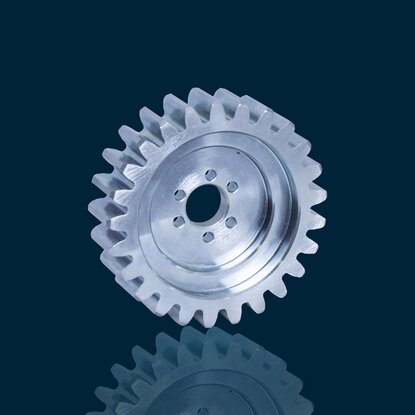

Module 4, steel

Ø 108mm, 25 teeth, for model 800-S

TOOTHED RACKS

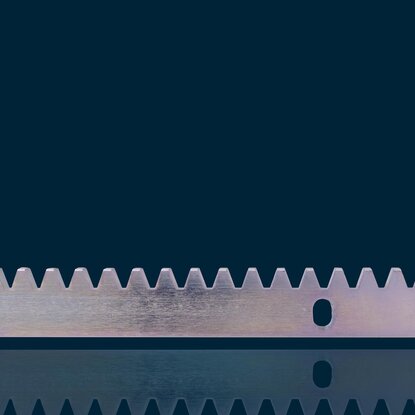

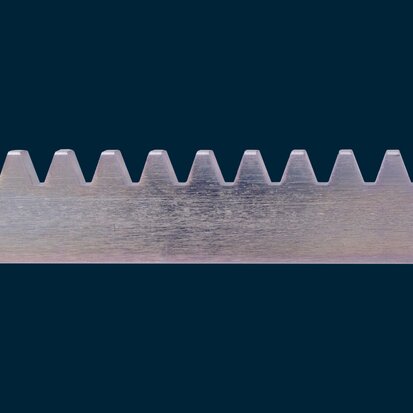

Module 4, 30x12mm

Galvanized, height adjustable, to be screwed on the gate

Module 4, 25x20mm

Plastic, height adjustable, to be screwed on the gate

Module 5, 45x30mm

Aluminium and plastic, height adjustable, to be screwed on the gate, incl. damping

Technical data

Type	Dimensions W/D/H (mm)	Max. Gate weight (kg)	Max. Gate length (mm)	Supply- / Operation Voltage from (in V)	Running speed (m/min.)
NOVA 800	420 x 314 x 304	800	14000	230V (50Hz) / 24V	12.6
NOVA 800-L	420 x 343 x 304	600	14000	230V (50Hz) / 24V	12.6
NOVA 800-S	420 x 314 x 304	300	14000	230V (50Hz) / 24V	16.8

NOVA

812000400-SET

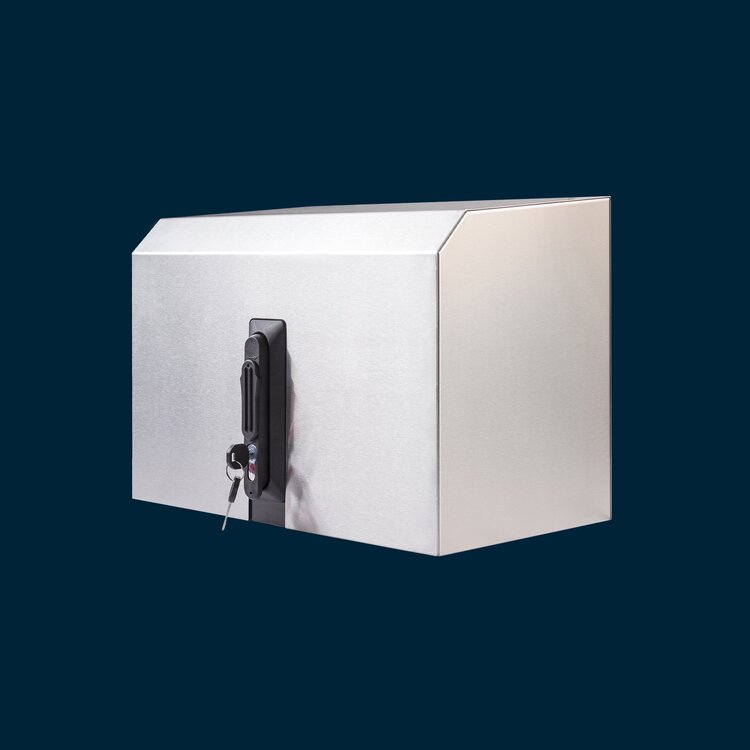

NOVA 800-L toothed wheel plastic mod. 5

Description: Slide gate opender NOVA 800-L 24V, with long drive shaft, toothed wheel plastic module 5
