EST 230V

ELKA offers a selection of slide gate openers in a compact or convenient housing for gates up to 16,000mm and 2,000kg. All gate openers are height adjustable up to 30mm.

The compact housing is made of robust steel. The components are easily accessible by loosening two screws on the sides of the gate opener. After the screws are loosened, the cover can be easily removed. The convenient housing is made of aluminium and offers plenty of space for additional installations. The components are easily accessible via the service door. Unlocking is done by using a hexagon key, which releases the clamping mechanism.

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Compact housing

The housings are made of steel and are galvanized and powder coated afterwards.

Convenient housing

The housings are made of powder-coated aluminium and offer plenty of space for additional installations. Including maintenance power outlet and completely pre-wired terminal row and socket for a 1-channel loop detector.

Safety

Immediate stop via electronic brake and reversing for a short distance take place when a safety device is activated. For compliance with the safety regulations, ELKA supplies suitable safety contact profiles and photoelectric barriers.

Certification

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process. The perfect opportunity for gate manufacturers to offer a certified system.

Variable

All gate openers of this series are height adjustable up to 30mm. The housings optionally are available in every RAL custom colour.

Controller MO 44-2

Simple operation thanks to easy menu navigation, one button input with serial switching or three button input, with safety contact profile detection for OPEN and CLOSE separately (8,2kOhm), partial opening learnable (via radio remote control or switch)

More information

Drive assembly

For gateposts on site. With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector.

TOOTHED WHEELS

Module 4 (Standard)

Steel, Ø 80mm, 18 teeth

Module 6 (optional)

Galvanized steel, Ø 80mm, 12 teeth

TOOTHED RACKS

Module 4, 30x12mm

Galvanized, height adjustable, to be screwed on the gate

Module 6, 30x30mm

Galvanized, to be welded on the gate

Technical data

Type	Dimensions W/D/H (mm)	Max. Gate weight (kg)	Max. Gate length (mm)	Supply- / Operation Voltage from (in V)	Running speed (m/min.)
EST 1204	335 x 230 x 410	1200	12000	230V (50Hz) / 230V	10.8
EST 2004	335 x 230 x 410	2000	16000	230V (50Hz) / 230V	10.8
EST 1204K	372 x 270 x 800	1200	12000	230V (50Hz) / 230V	10.8
EST 2004K	372 x 270 x 800	2000	16000	230V (50Hz) / 230V	10.8

Slide gate openers 230V

802003200-SET

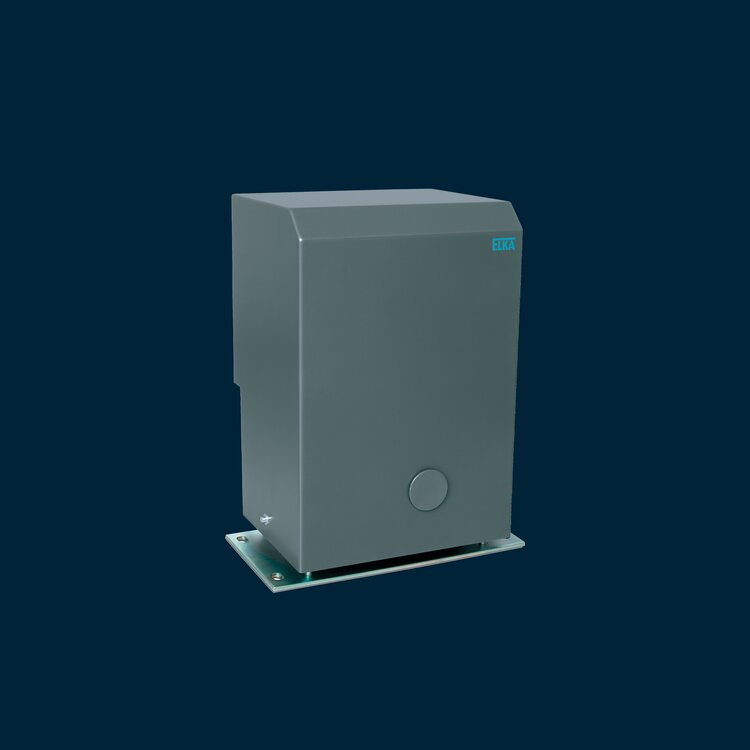

EST 2004 slide gate opener with MO 44 controller

Description: EST 2004 slide gate opener, with MO 44 controller, zinc coated toothed wheel, module 4
