Housing MS 1800 made from Aluminum

The high-quality aluminum housing offers plenty of space for built-in components and optional LED lighting. Additional
service doors and an integrated mounting plate facilitate on-site installation.

In addition to ELKA installation items, we integrate components supplied ex works on request - or manufacture suitable cut-outs for installation on site.

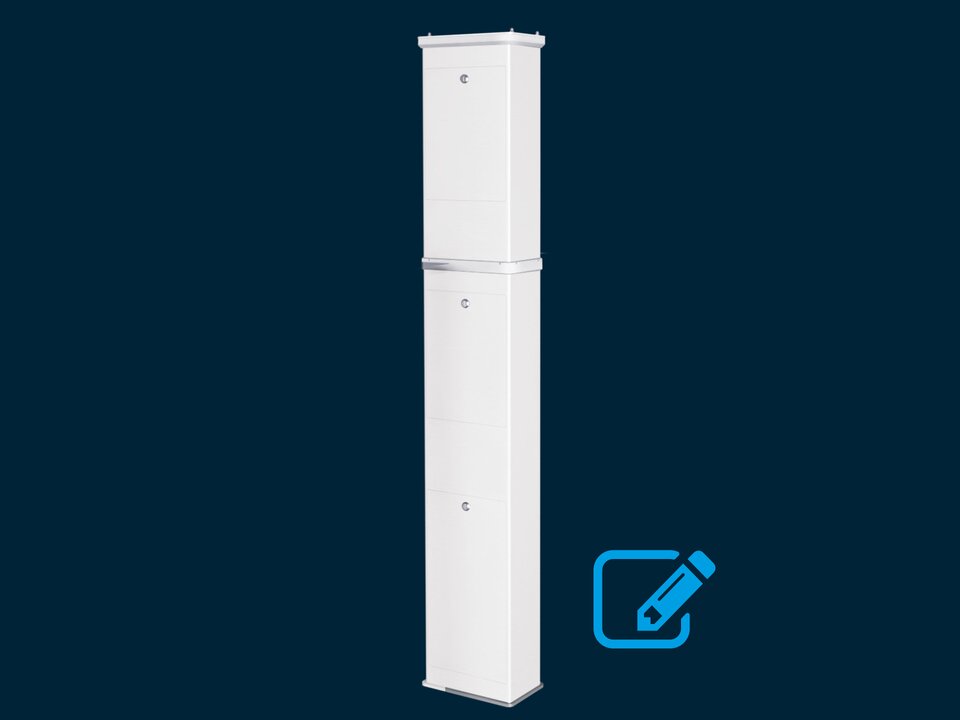

Highest quality

of the installed components and the high-quality aluminium housing.

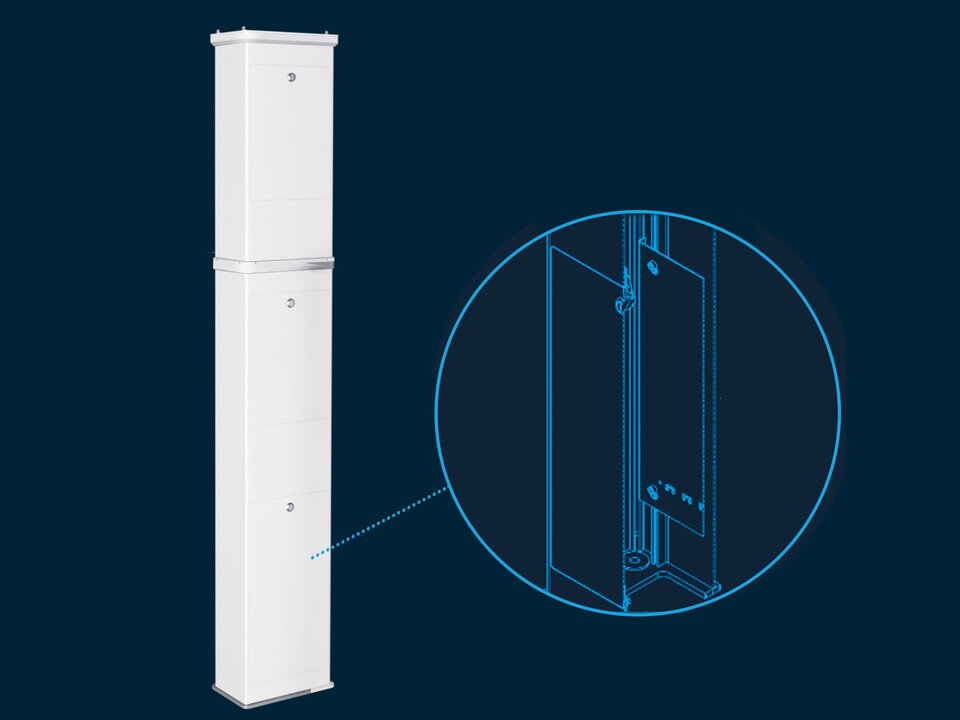

Convenient Operation

and easy installation thanks to the integrated mounting plate.

Robust, durable

and reliable.

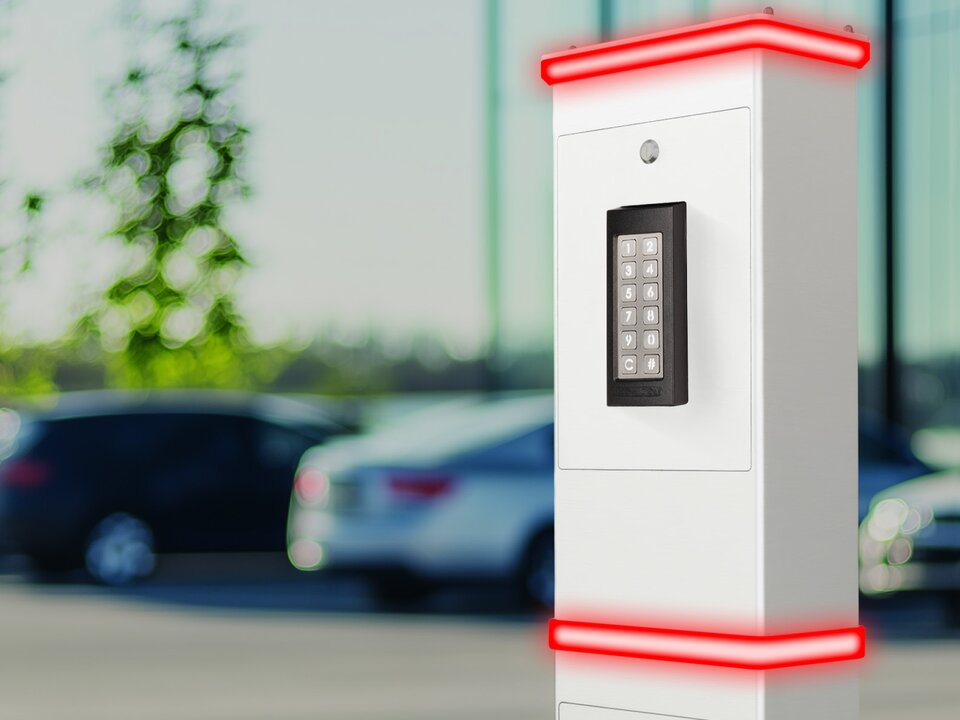

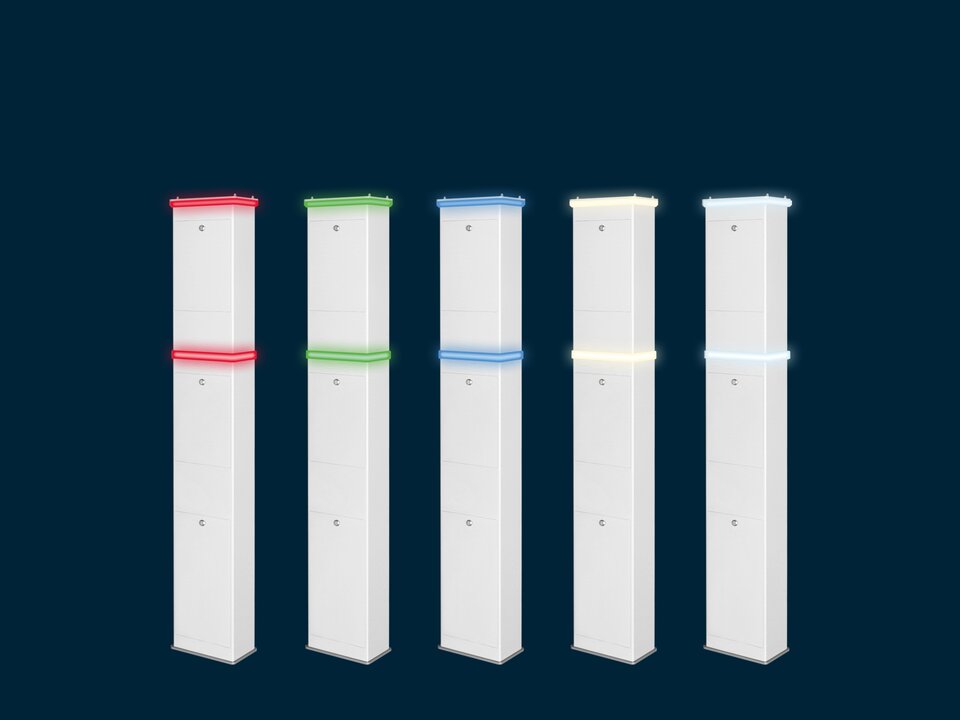

LED lighting

Optional LED lighting in the cover and intermediate element. Available in warm white, red, green, blue or cool white.

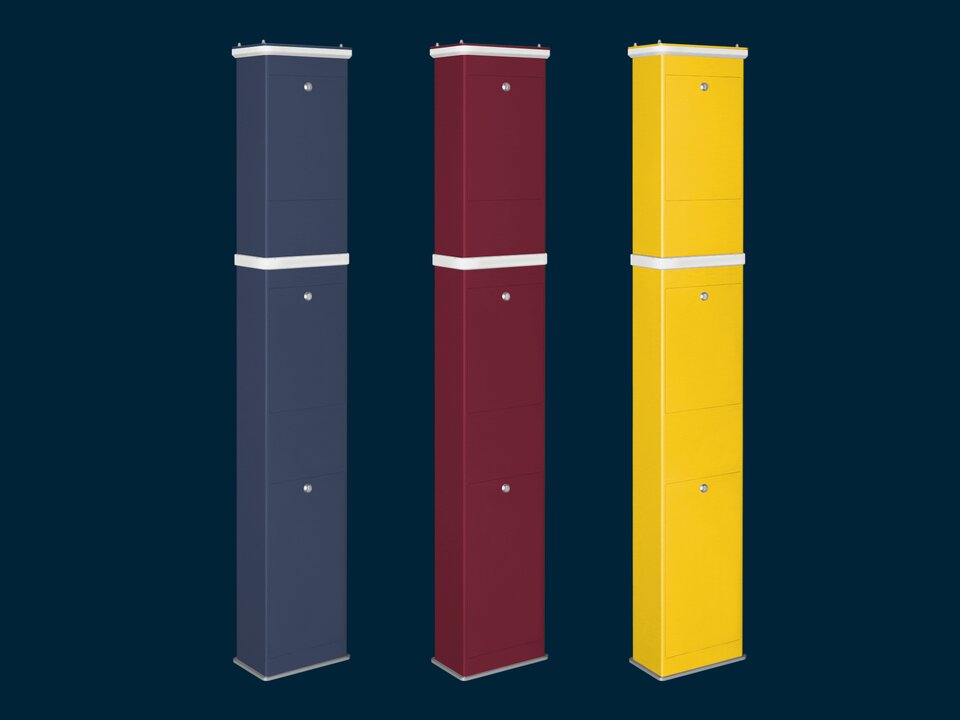

Special colors

All components can be painted in all RAL special colors on request.

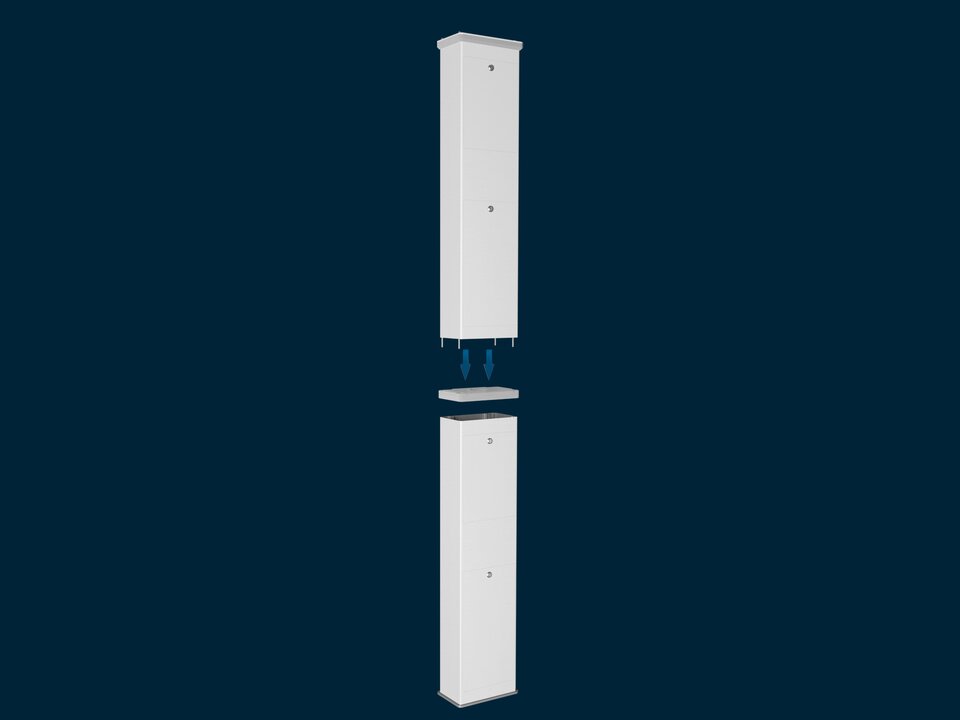

Subsequent increase

The MS 1800 housing can be subsequently extended by 600mm using a housing extension. Intermediate sizes on request.

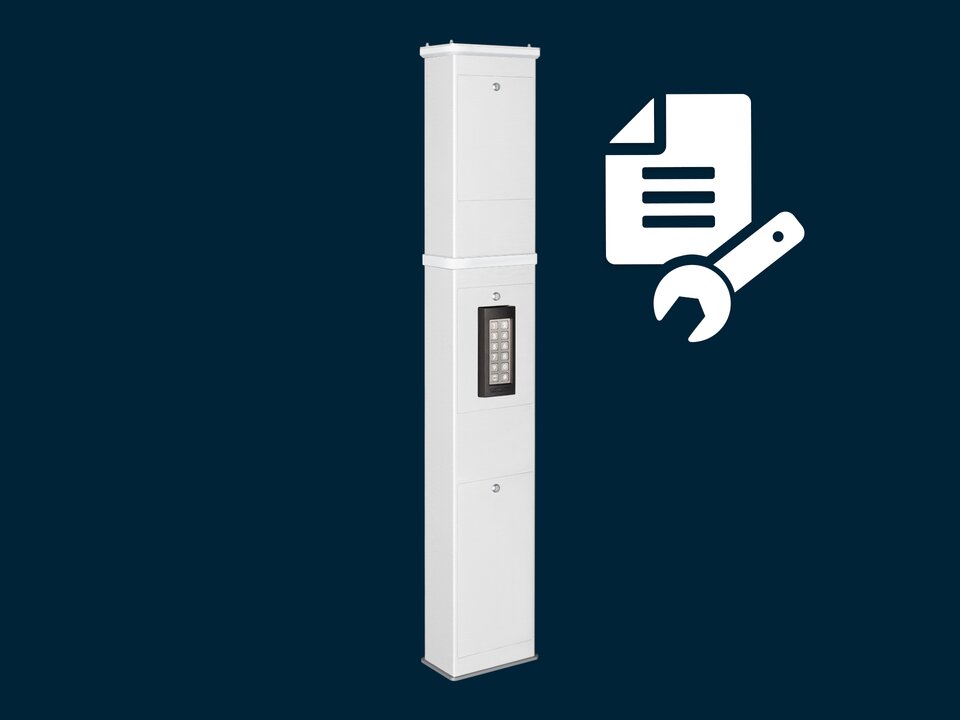

Installation service

You have the possibility to use our installation service. In addition to the wide range of ELKA installation items, we would be pleased to install your provided items into the housing during production. Alternatively we can make cut-outs, so that you can easily and quickly install your equipment on site.

Technical data

Dimensions W/D/H (mm)	Installation Dimensions W/D/H (mm)	Installation via
280 x 165 x 1200	245 x 140 x 255	Side plug-in door (lockable) , Removable front panel (lockable)
280 x 165 x 1800	245 x 140 x 255	Removable front panel (lockable) , Side plug-in door (lockable)
280 x 165 x 2400	245 x 140 x 255	Removable front panel (lockable) , Side plug-in door (lockable)

Standgehäuse

819000215-SET
Housing MS 1800

Description: Aluminum housing MS 1800, 1.800 x 280 x 165mm, press blanck finished aluminum 1x plug-in door, 2x front- panels, 1x mounting plate

Color

Blank as standard, Blank as standard, Blank as standard

More colors available in the configurator

Housing MS 1800 made from Aluminum

The high-quality aluminum housing offers plenty of space for built-in components and optional LED lighting. Additional
service doors and an integrated mounting plate facilitate on-site installation.

In addition to ELKA installation items, we integrate components supplied ex works on request - or manufacture suitable cut-outs for installation on site.

Highest quality

of the installed components and the high-quality aluminium housing.

Convenient Operation

and easy installation thanks to the integrated mounting plate.

Robust, durable

and reliable.

LED lighting

Optional LED lighting in the cover and intermediate element. Available in warm white, red, green, blue or cool white.

Special colors

All components can be painted in all RAL special colors on request.

Subsequent increase

The MS 1800 housing can be subsequently extended by 600mm using a housing extension. Intermediate sizes on request.

Installation service

Technical data

Dimensions W/D/H (mm)	Installation Dimensions W/D/H (mm)	Installation via
280 x 165 x 1200	245 x 140 x 255	Side plug-in door (lockable) , Removable front panel (lockable)
280 x 165 x 1800	245 x 140 x 255	Removable front panel (lockable) , Side plug-in door (lockable)
280 x 165 x 2400	245 x 140 x 255	Removable front panel (lockable) , Side plug-in door (lockable)

Recommended components

Category: Accessories
Product name: Retrofit kit LED-light element

Category: Accessories
Product name: Retrofrit kit LED-light element

Category: Spare parts
Product name: Power supply for housings WITHOUT installation

Category: Spare parts
Product name: Swivelling lever lock for housing door

Downloads

Brochures

Housing MS Datasheet.pdf

PDF

4.59 MB
