EST 400V

ELKA offers a selection of slide gate openers in a convenient housing for gates up to 20,000mm and 4,000kg. All gate openers are height adjustable up to 30mm.

The housings are made of powder-coated aluminium and offers plenty of space for additional installations. Including maintenance power outlet and completely pre-wired terminal row and socket for a 1-channel loop detector.

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Convenient housing

The housings are made of powder-coated aluminium and offer plenty of space for additional installations. Including maintenance power outlet and completely pre-wired terminal row and socket for a 1-channel loop detector.

Easy unlocking

It is locked using a hexagonal key that releases the clamping mechanism in the drive.

Safety

Immediate stop via electronic brake and reversing for a short distance take place when a safety device is activated. For compliance with the safety regulations, ELKA supplies suitable safety contact profiles and photoelectric barriers.

Certification

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process. The perfect opportunity for gate manufacturers to offer a certified system.

Variable

All gate openers of this series are height adjustable up to 30mm. The housings optionally are available in every RAL custom colour.

Controller MO 44-2

Simple operation thanks to easy menu navigation, one button input with serial switching or three button input, with safety contact profile detection for OPEN and CLOSE separately (8,2kOhm), partial opening learnable (via radio remote control or switch)

More information

Drive assembly

For gateposts on site. With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector.

TOOTHED WHEELS

Module 4 (Standard for EST 2204K)

Made of steel, Ø 80mm, 18 teeth

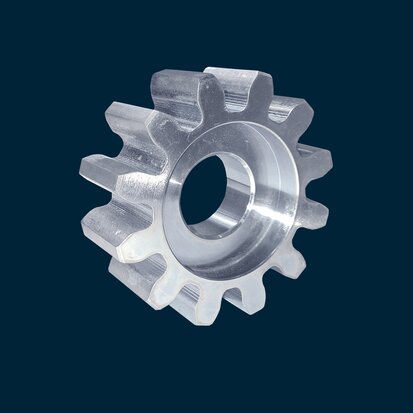

Module 6 (Standard for EST 4004K, optionally for EST 2204K)

Galvanized steel, Ø 80mm, 12 teeth

TOOTHED RACKS

Module 4, 30x12 mm

Galvanized, height adjustable, to be screwed on the gate

Module 6, 30x30 mm

Galvanized, to be welded on the gate

Slide gate openers 400V

802004100-SET
Slide gate opener EST 4004K

Description: Slide gate opener EST 4004K, 400V, incl. controller, zinc coated toothed wheel, module 6

EST 400V

ELKA offers a selection of slide gate openers in a convenient housing for gates up to 20,000mm and 4,000kg. All gate openers are height adjustable up to 30mm.

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

We look forward to your inquiry.

Convenient housing

Easy unlocking

It is locked using a hexagonal key that releases the clamping mechanism in the drive.

Safety

Certification

For serial gates designed in accordance with the EU Norms, ELKA offers support during the certification process. The perfect opportunity for gate manufacturers to offer a certified system.

Variable

All gate openers of this series are height adjustable up to 30mm. The housings optionally are available in every RAL custom colour.

Controller MO 44-2

More information

Drive assembly

For gateposts on site. With galvanized steel U-profile, as well as prewired terminal row and socket for 1-channel loop detector.

TOOTHED WHEELS

Module 4 (Standard for EST 2204K)

Made of steel, Ø 80mm, 18 teeth

Module 6 (Standard for EST 4004K, optionally for EST 2204K)

Galvanized steel, Ø 80mm, 12 teeth

TOOTHED RACKS

Module 4, 30x12 mm

Galvanized, height adjustable, to be screwed on the gate

Module 6, 30x30 mm

Galvanized, to be welded on the gate

Downloads
