EntryTower 1200

The smart control tower can be integrated into the EJOIN IoT portal to enable convenient, location-independent management from any device. It combines innovative technology with customised access control solutions, tailored to your individual requirements. Whether by vehicle identification, QR code, app or Bluetooth - you retain full control over your accesspoints at all times.

The EntryTower is available in two different heights of 1200mm and 1800mm. Intermediate sizes on request.

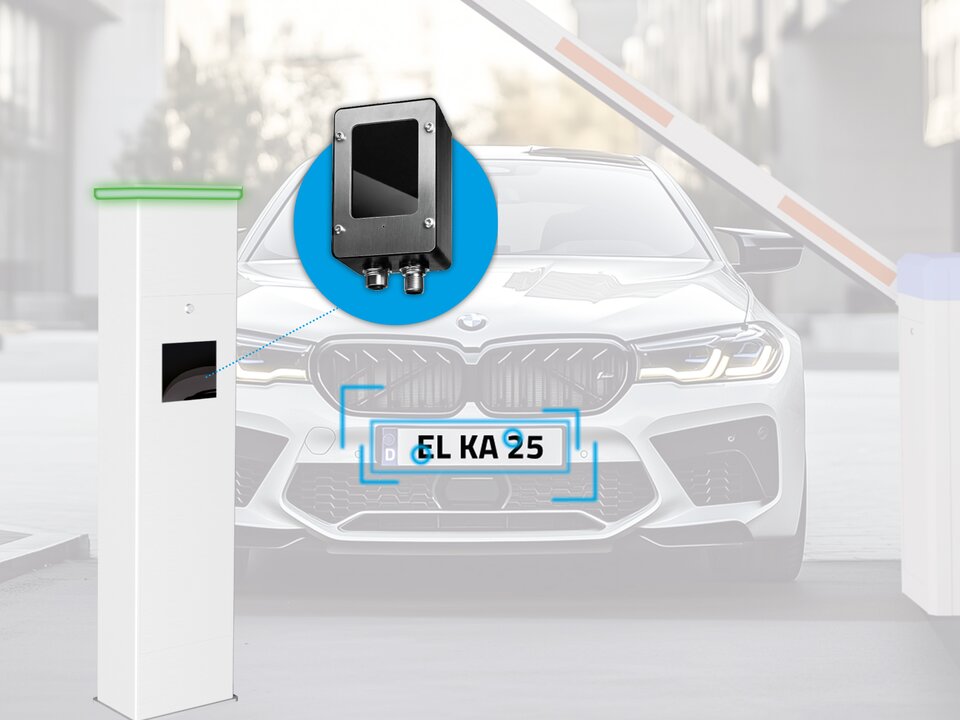

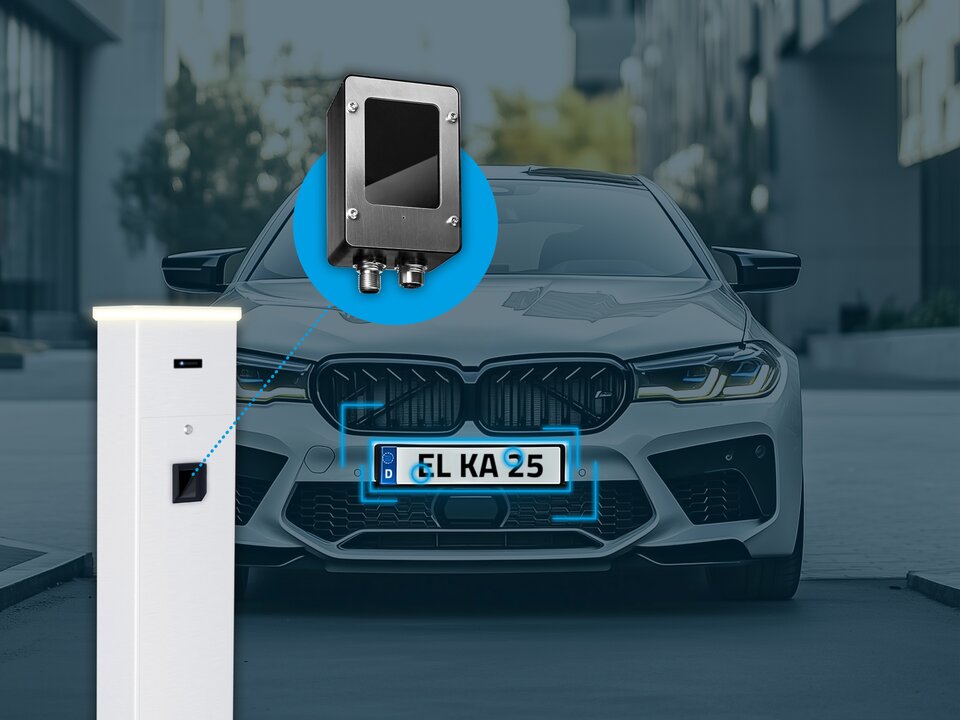

Access control through vehicle identification

For automated vehicle identification with high detection accuracy up to a speed of 300 km/h. Powerful and robust camera, made in Germany with IP67-protected housing. Fast data processing and image analysis in real time. License plates can be stored in the EJOIN IoT portal and access can be limited in time.

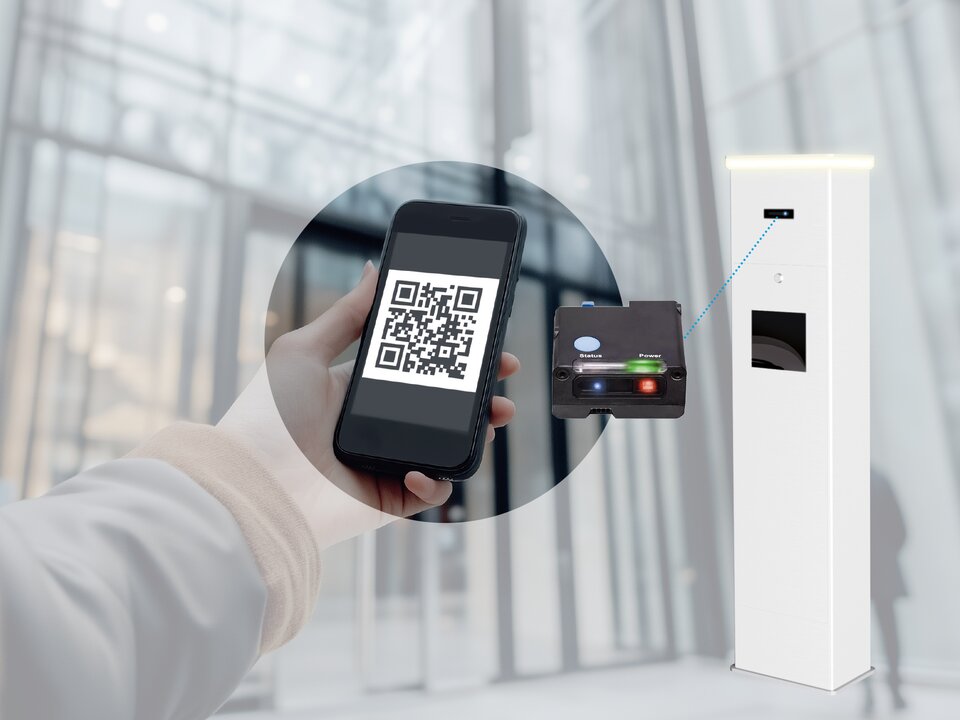

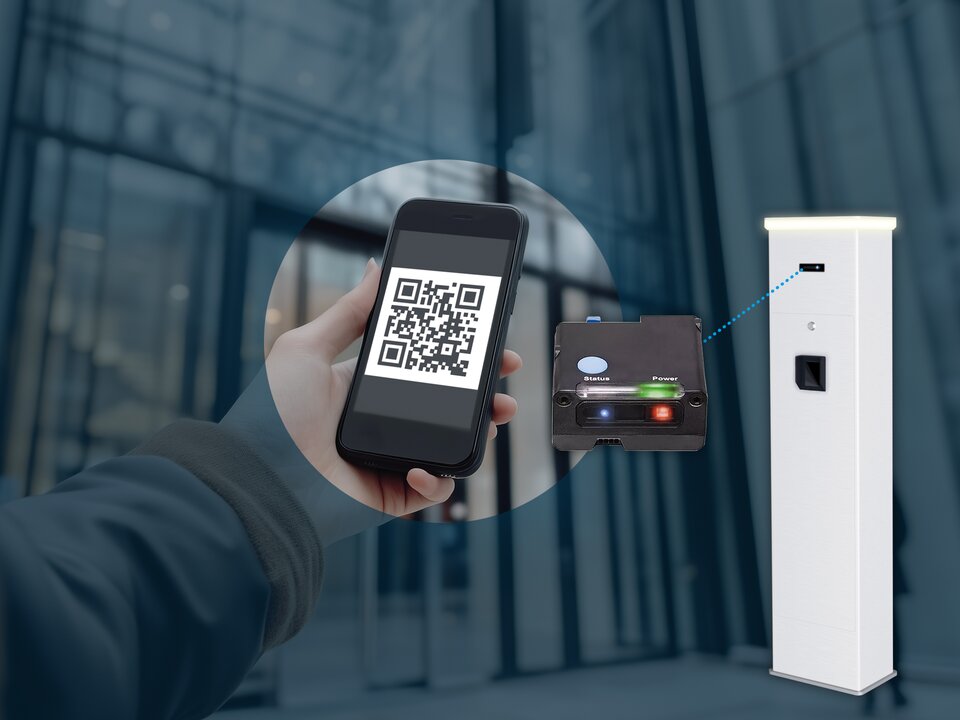

QR code reader

The compact scan module with IP54 protection and a UV-resistant viewing window is suitable for indoor and outdoor use. The high-resolution image sensor with its high motion tolerance ensures reliable detection of QR codes, even on smartphone displays.

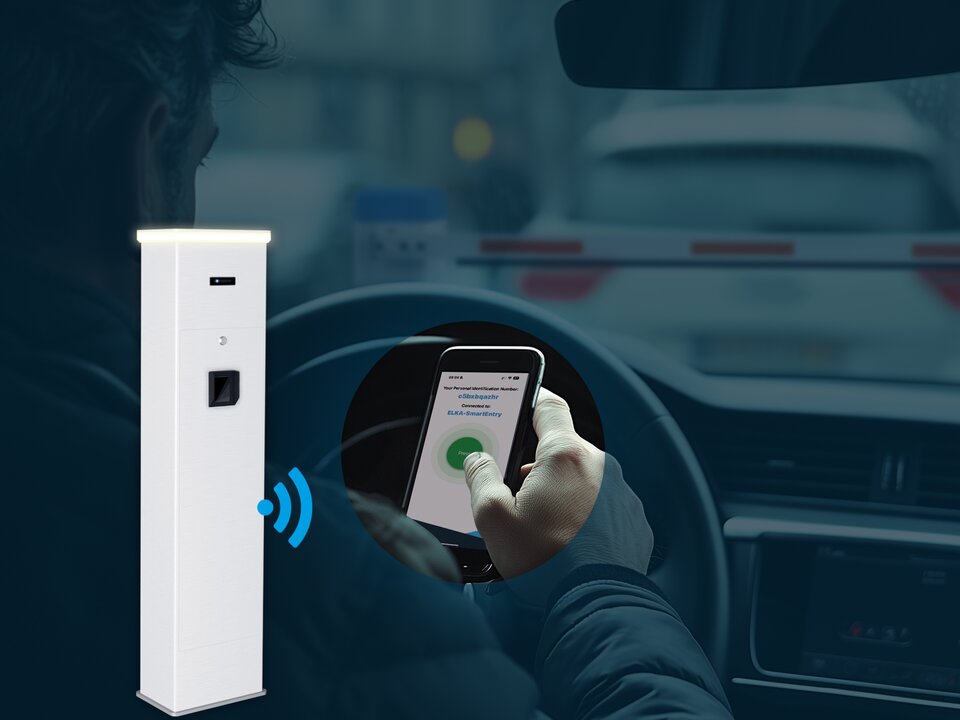

MobileEntry App

The free app can be used like a handheld transmitter for access control. The hardware ID of the mobile device is stored in our EJOIN IoT portal and access can be limited in time, for example.

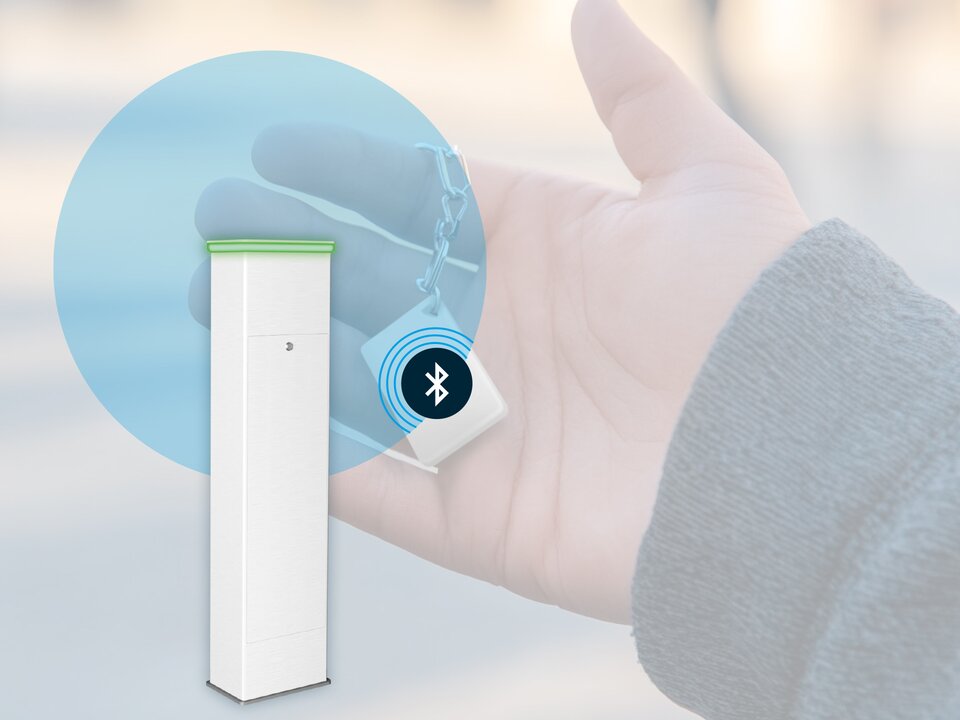

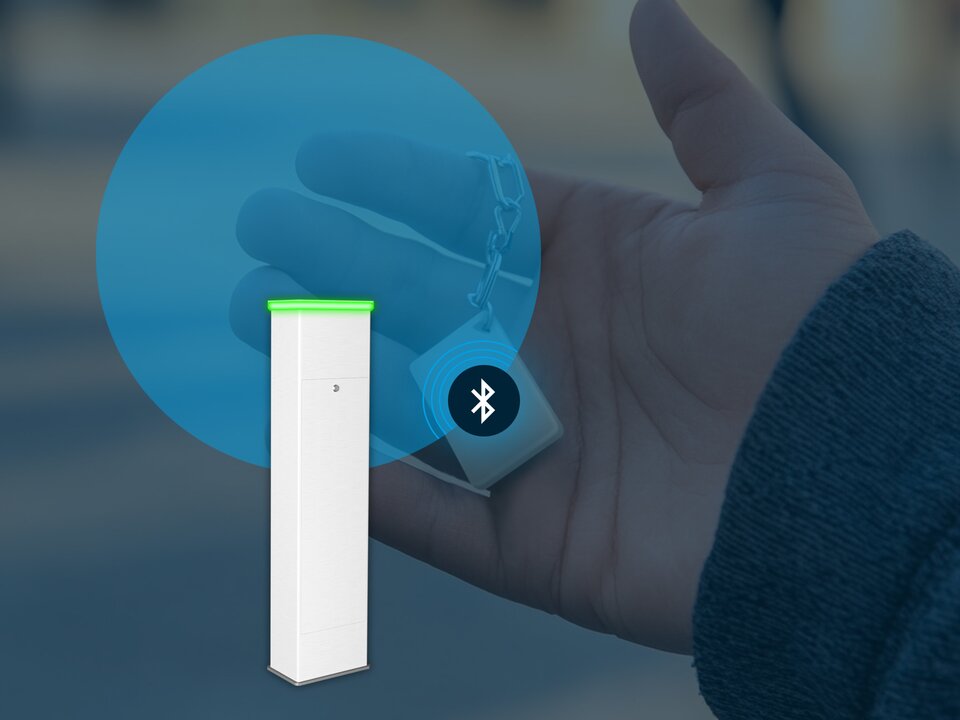

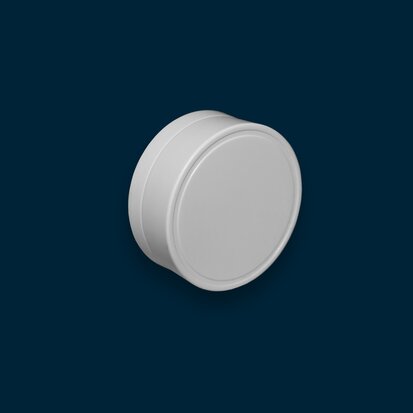

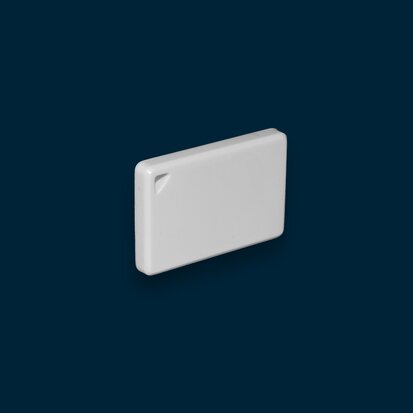

Bluetooth-Token

As soon as the active Bluetooth token comes within range of the EntryTower, the access authorization is checked and released if necessary. The signal strength can be adjusted if necessary. The hardware ID of the token is stored in our EJOIN IoT portal and access can be limited in time, for example.

Convenient management in the IoT portal

With the EJOIN IoT portal, you can now monitor and manage your EntryTower's access controls flexibly and from any location. The intuitive user interface allows you, for example, to store new licence plates, set the number of accesses or limit them to a specific time period.

More information

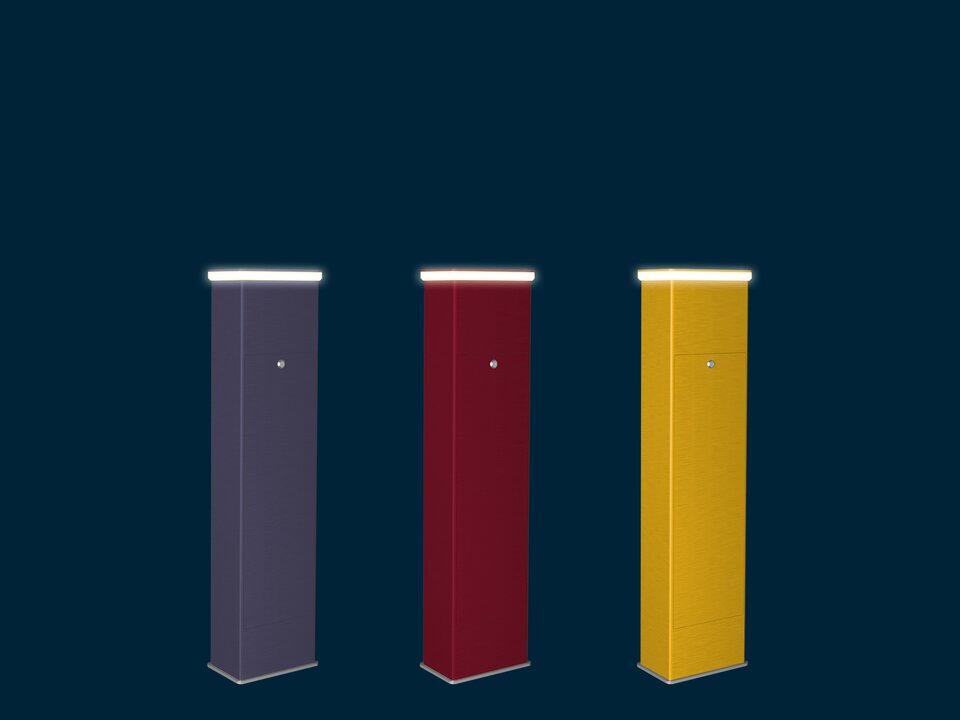

Special colors

The column as a whole, the lid or the plug-in door can be painted in all RAL special colors for an additional charge.

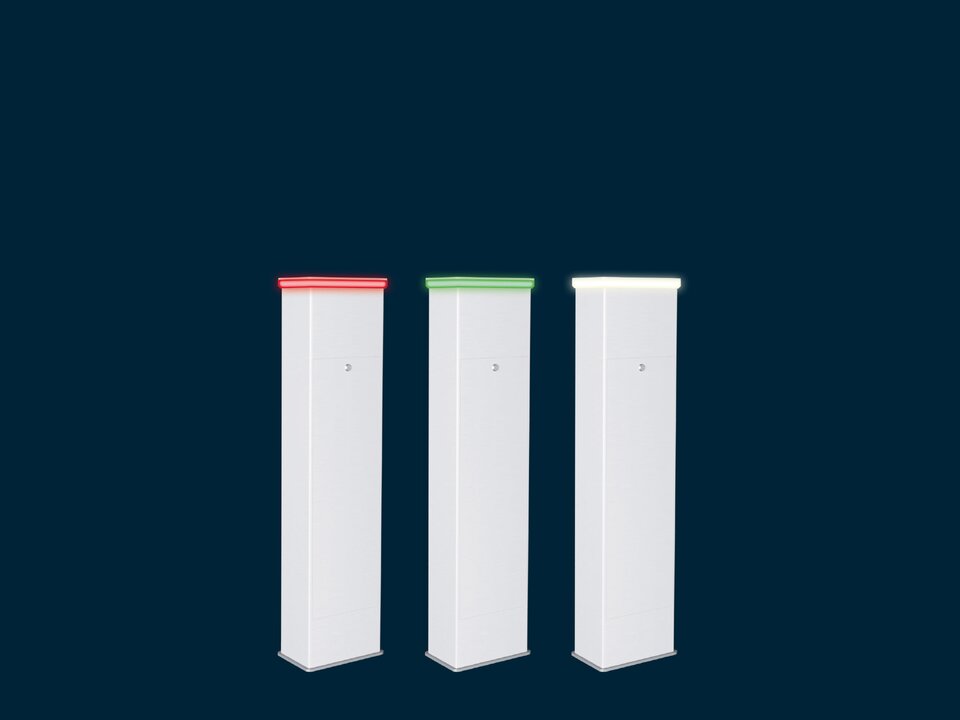

LED Lighting

The lighting provides feedback via color as to whether access is permitted or denied.

Plug-in door

Convenient access to the built-in components

Global LTE router

Network integration via Gigabit LAN / WLAN

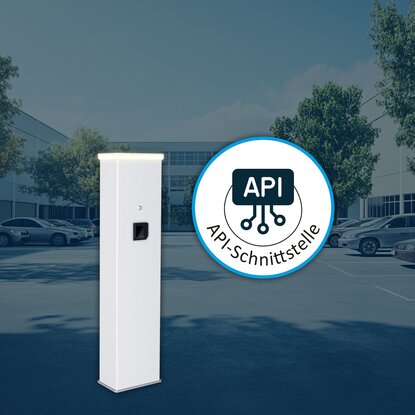

API interface

Enables connection to existing systems

Technical data

Dimensions W/D/H (mm)	Installation via
280 x 165 x 1200	Side plug-in door (lockable)
280 x 165 x 1800	Side plug-in door (lockable)

The MobileEntry app and the Bluetooth token cannot be used in combination.

To operate the EntryTower (with Raspberry Pi) at ambient temperatures below 0°C, an additional heater with thermostat must be installed in the EntryTower.

Entry

800000000-SET
EntryTower 1200, incl. 5 lic.

Description: Entry Tower 1200, 1200 x 280 x 165mm, press blanck finished aluminium, incl. plug-in door, and mounting plate, LED lighting, network-compatible 5 access licenses incl.

Color

press blank, Blank as standard, Blank as standard

More colors available in the configurator

Configure
