Electromechanical traffic bollard

Electromechanical traffic bollards from ELKA can be used for traffic control or as protective barriers in pedestrian zones, access roads or on commercial properties. Pedestrians and cyclists can pass through unhindered, while vehicles are subject to access control. ELKA traffic bollards are characterized by high quality standards, easy installation and convenient operation.

Contact us
Find out more about ELKA products and corresponding accessory components. Our competent team will be happy to assist you with the planning and implementation of projects.

Benefit from over 45 years of experience - approx. 100,000 barriers installed in over 80 countries worldwide. All products are developed and manufactured in Germany and are subject to strict quality controls.

We look forward to your inquiry.

Digital Showroom

Experience our bollards in a new dimension: interactive, informative and available at any time. Discover the innovative functions and clever control options in a virtual environment.

Products -> Digital Services -> Digital Showroom

The showroom is only displayed after successful login in the partner area.

Digital Showroom

Maintenance-free BLDC motor

The bollard is driven by a maintenance-free BLDC motor with high efficiency.

Waterproof

Motor, gear and motor driver of the bollard are waterproof (protection class IP68). Operation is also possible after briefly standing under water.

Optional start-up function

The bollard rises a few centimeters during the upward movement. The LED lighting becomes visible to traffic and flashes. The bollard only raises fully after a set waiting time.

Manual emergency release

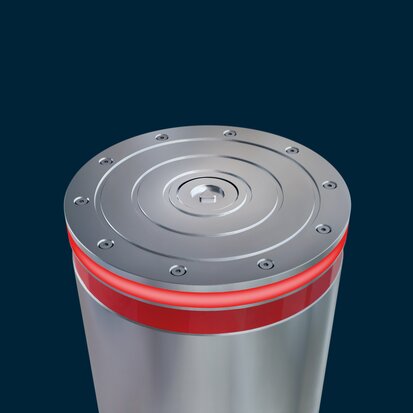

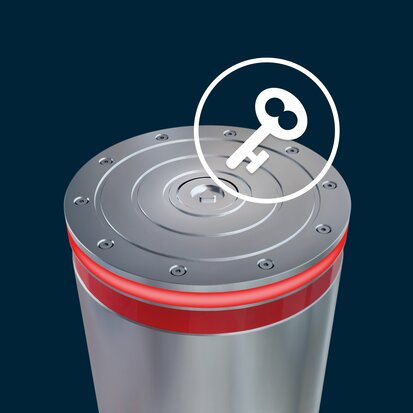

The manual emergency release takes place directly on the cover of the bollard. The smaller cover is removed, using a fire department triangle for example. The emergency release rod is pulled out at the pull loop and the bollard drops down immediately.

Controller

The controller is optionally available in a plastic housing, an elegant aluminum column or for installation in an on-site housing. It can control up to three traffic bollards (partial opening programmable).

In the web store, the controller is configured and ordered separately from traffic bollards.

Connectivity

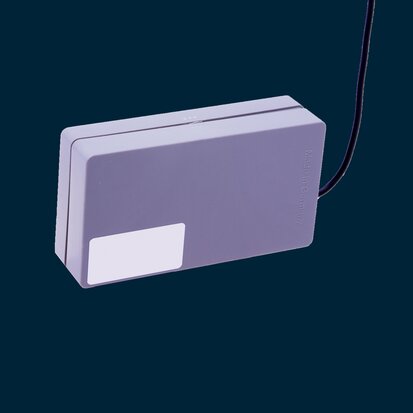

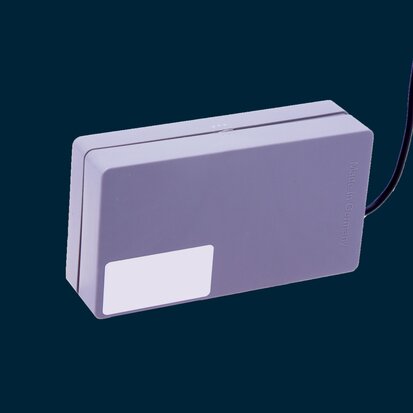

Connection options for e.g. optional radio remote control, induction loops and safety devices Performance Level C

Force reversal

The force is monitored during the upward movement. If an obstacle is detected, the force is reversed.

Ice-breaker function

If a thin layer of ice has formed on the ground in cold weather, the bollard briefly lifts with increased force when it is raised. The ice breaks and the bollard can be raised properly.

PROFESSIONAL

Height

The cylinders are available in two different heights: 600mm and 800mm.

Quality

made of V4A stainless steel, integrated LED lighting

Strong

Wall thickness 4mm (8mm in the highly stressed area).

Individual design

Individual milling in the lid and on the base plate makes your product unique.

Technical data

Type	Running time approx	Cycles / day max.
EP 600-EM	3,3 / 7 / 9,5	2000
EP 800-EM	4,4 / 9,3 / 12,6	2000

Bollard

810000110-SET
EP 800-EM

Description: Traffic bollard EP 800-EM electromechanical, 800 mm, height ø273mm,

Configure
